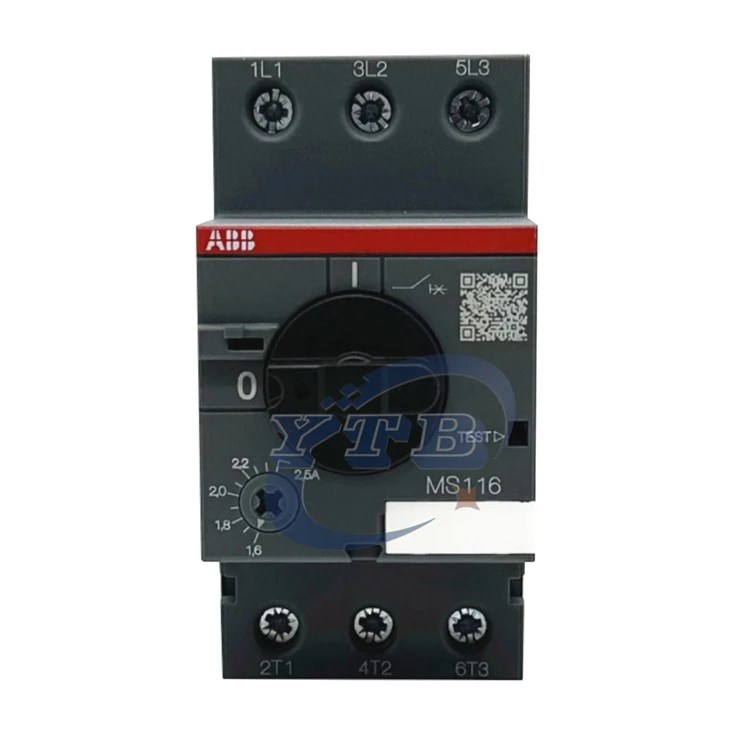

ABB MS116-2.5 Motor Protection Circuit Breaker

● Model Number:ABB MS116-2.5
● 1.6–2.5A Compact MPCB for 400V 3-phase 0.75kW Motors
● The ABB MS116-2.5 is a classic compact rotary Motor Protection Circuit Breaker (MPCB) from the ABB MS116 series. It is designed for low-power miniature industrial motors and widely used in fine chemical equipment and small automation machinery. This protector features an adjustable current range of 1.6A–2.5A, ideal for 0.75kW three-phase motors under 400V operating conditions. It is also compatible with single-phase small motors within the same current range.

Send Inquiry

ABB MS116-2.5 Technical Specifications

Model: ABB MS116-2.5

Adjustable current range: 1.6A～2.5A (continuously and precisely adjustable via rotary knob)

Suitable motor power: 0.75kW small 3-phase motor at 400V

Number of poles: 3P

Rated operational voltage: 690V AC

Rated insulation voltage: 690V

Rated frequency: 50/60Hz, worldwide application

Trip type: Thermal-magnetic trip (Class 10A)

Mounting: Standard 35mm DIN rail mounting

Protection class: IP20

What is ABB MS116-2.5?

The ABB MS116-2.5 is a rotary Motor Protection Circuit Breaker (MPCB) from the MS116 series. It works great for low-power miniature industrial motors and is widely adopted in small automation machinery, precision HVAC equipment and fine chemical systems.

It offers an adjustable current range of 1.6A–2.5A, suitable for 0.75kW three-phase motors at 400V. It can also be used with single-phase small motors within the same current range.

ABB MS116-25 3 Phase Adjustable Motor Protection Switch

Features of ABB MS116-2.5

Precise low-current adjustment: The ABB MS116-2.5 features continuous adjustable current from 1.6A–2.5A, tailored for 0.75kW miniature motors. It delivers accurate protection for light loads and prevents missing trips or nuisance tripping.

Wide operating temperature range: Built-in temperature compensation with flame-retardant housing. Stable performance in dusty, high and low-temperature workshops for most industrial environments.

Compact, easy installation and maintenance: 45mm narrow body with standard DIN rail mounting. Fits limited-space control cabinets and simplifies routine inspection.

MS116-25 Thermal Magnetic Motor Circuit Breaker

Difference between low & high current MS116 models

Specifications vary across the MS116 range.
Low-current models including MS116-2.5, MS116-4, MS116-6, MS116-10, MS116-16 offer 50kA Ics@400V with high breaking capacity for small motors.
High-current models MS116-20, MS116-25 reach 10kA Ics@400V, cost-effective for standard operating conditions.
Choose low-current MS116 variants for small motors if strong short-circuit protection is required.

Installation & Reset Guide

This protector clips onto standard 35mm DIN rails for easy mounting and removal, compatible with most control cabinets.

When tripping occurs due to overload, short circuit or phase loss, replacement is not required. Locate and clear the fault, wait for the internal bimetallic element to cool down, turn the rotary knob to OFF for reset, and switch on again after confirming no hazards remain.

During maintenance, fit an optional lock attachment to secure the knob at OFF position and prevent accidental switch-on accidents.

Aftersales Support

Quantity available: In stock.

Warranty: 12 months.

Lead time: Shipment within 3-5 working days.

Terms of payment: T/T. RMB (CNY) support.

Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.

FAQ

Q1: Is slight heating of the device normal?

A1: Mild heat under normal load is expected during operation. If it becomes unusually hot, check for loose terminal connections, excessive load current, and whether the setting matches the motor rated current to troubleshoot potential risks in a timely manner.

Q2: Why can't the MS116-2.5 be closed after tripping?

A2: In most cases, the fault has not been removed or internal components have not cooled down for reset. Inspect for motor short circuits, overloads or phase loss. Power off and leave it to cool, turn the knob back to OFF to reset, then close it only after all faults are cleared.

Q3: Does the MS116-2.5 need to be used with a thermal relay?

A3: No. Equipped with thermal-magnetic trip, it integrates overload, short-circuit and phase loss protection as well as disconnection function. One unit delivers full protection and control for miniature motors. Thermal relays and fuses are no longer required, simplifying the electrical control circuit.

Q4: How can I place an order or apply for bulk purchase discounts?

A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.

For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the ABB MS116-2.5!
