Technical Parameters of Allen-Bradley 5069-L330ERM
Model: 5069-L330ERM
Series: Allen-Bradley CompactLogix 5380
Product Type: Motion Control Programmable Controller
User Memory: 3 MB
On-board Local I/O: 31-point Digital I/O
Max Motion Axes: 16 axes (EtherNet/IP CIP Motion)
Max EtherNet/IP Nodes: 60

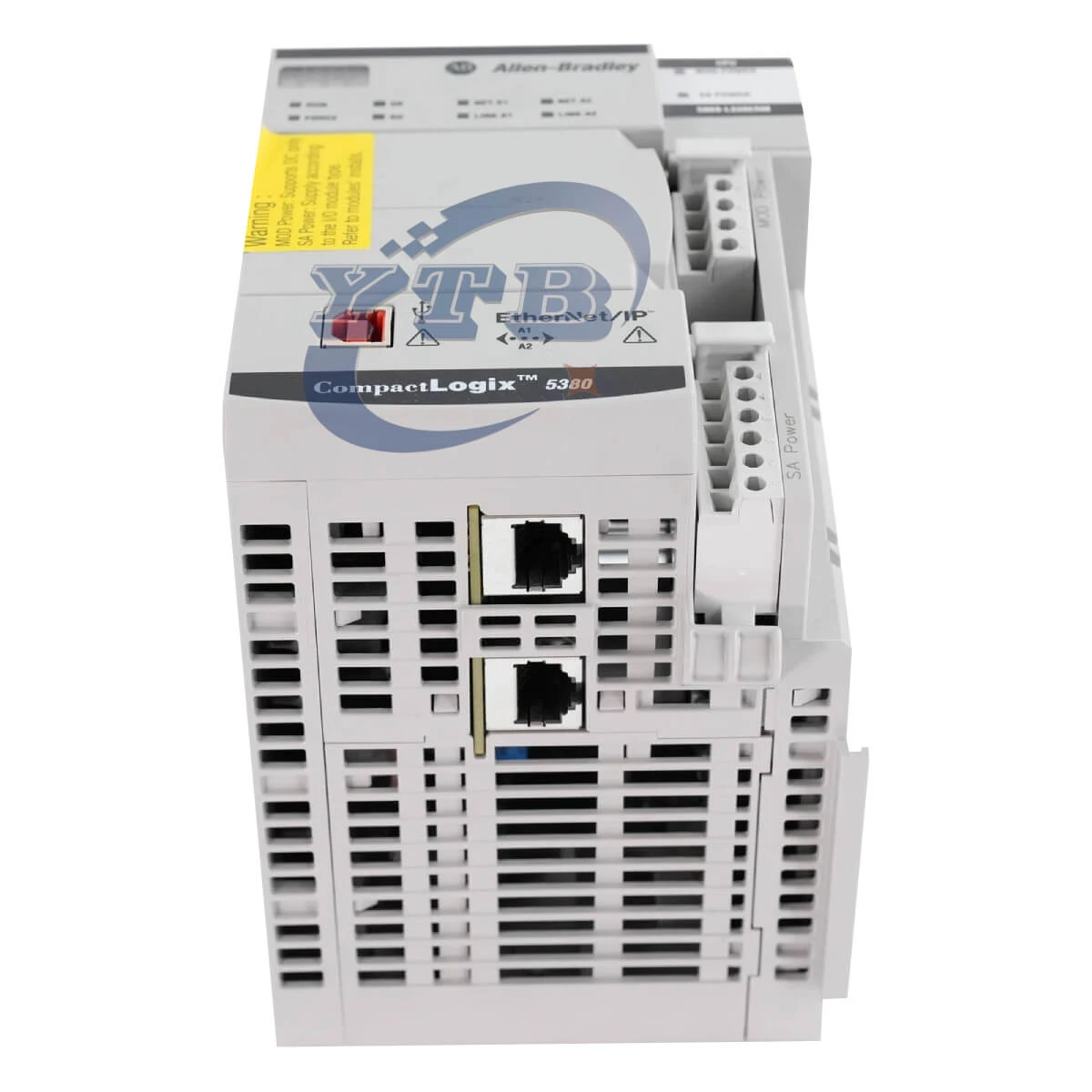

Communication Ports: 2 × Gigabit EtherNet/IP ports, 1 × USB programming port
Supported Protocols: EtherNet/IP, CIP Motion, CIP Safety
Supply Voltage: 18…32V DC

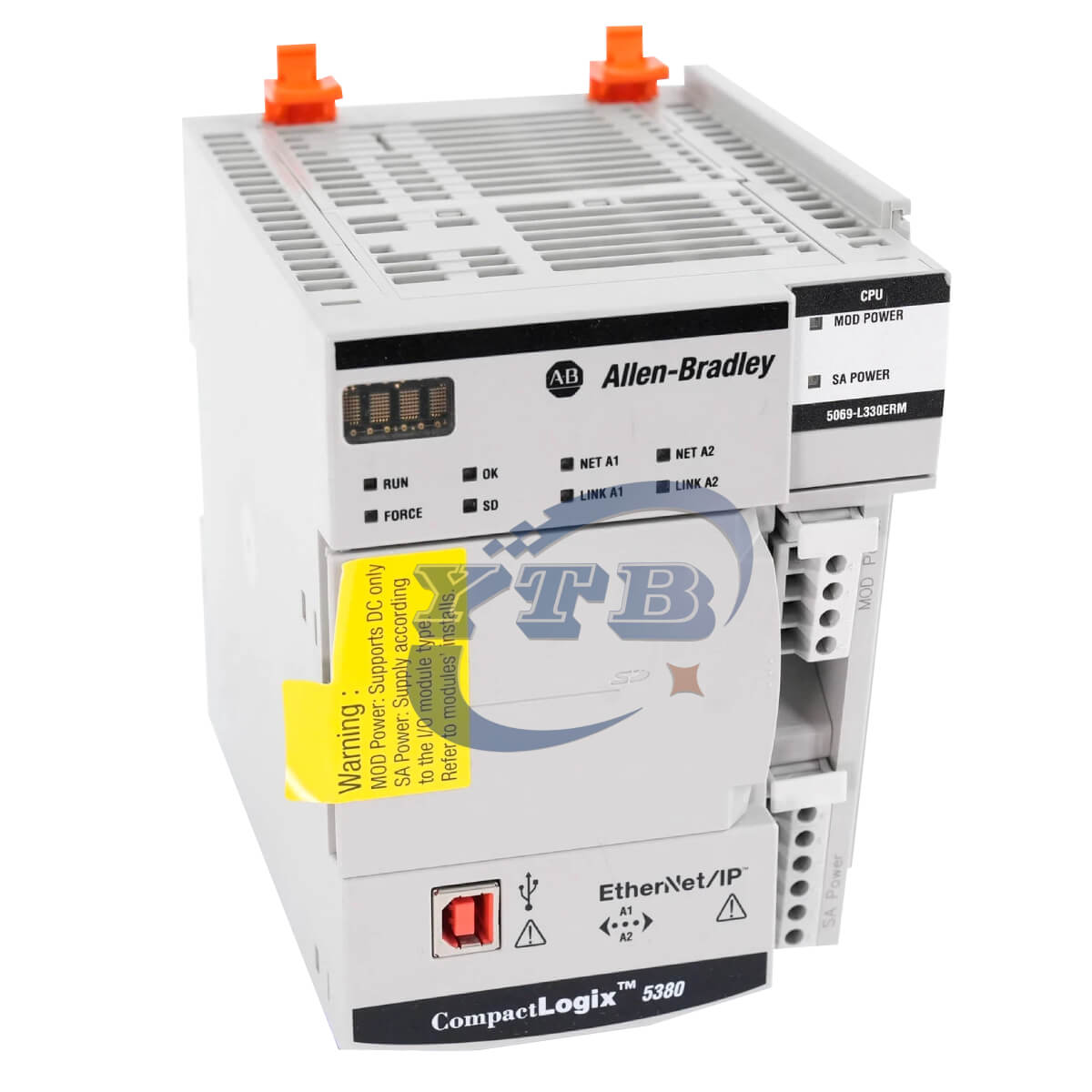

Product Introduction: Allen‑Bradley 5069-L330ERM
● It is a machine-level motion controller from Rockwell CompactLogix 5380 series, with 3MB user memory, quad-core processor and 31-point on-board local I/O.
● Supports up to 16 axes of integrated CIP motion control. Equipped with dual Gigabit EtherNet/IP ports and connects up to 60 network nodes.
● Active OEM model from the manufacturer, built for medium & small automated machines and standalone motion control systems.
● Widely used in packaging machines, conveyors and robot workstations. Also suitable for replacing legacy 1769-series controllers.
Core Performance & Benefits
Quad-core high performance for standalone machine control Quad-core processor with 3MB memory delivers fast response. It handles logic, motion and data acquisition to meet real-time control requirements of high-speed machines.
Native 16-axis motion control cuts hardware costs Built-in CIP Motion controls up to 16 servo axes without extra motion modules. Works with Kinetix servo drives for positioning, synchronization and electronic cam functions to simplify system design.
Dual Gigabit EtherNet/IP for reliable communication Dual Gigabit ports support DLR ring network. Connect up to 60 network nodes including servos, I/O and HMI for multi-component networking.
On-board 31-point local I/O saves space and cost Comes with 31 digital I/O points. No extra I/O modules needed for basic machine signals, ideal for compact OEM equipment.
Typical Application Scenarios
Food & Beverage Industry: Multi-axis synchronous control for high-speed filling machines, capping machines and sterilization lines.
Packaging Industry: Full-process control of film feeding, sealing, cutting and palletizing on automatic packaging lines.
3C Electronics Industry: Precision motion control for SMT auxiliary machines, insertion machines and inspection equipment.
Logistics Industry: Conveying and sorting control for cross-belt sorters and pop-up wheel sorters.
New Energy Industry: High-precision motion control for battery assembly and cell testing equipment.
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Does the 5069-L330ERM come with built-in I/O points?
A1: Yes. This model has integrated 31-point local digital I/O. It can work directly for basic machines without extra I/O modules.
Q2: How many motion axes does the 5069-L330ERM support?
A2: Using EtherNet/IP CIP Motion protocol, it supports up to 16 axes of integrated motion control for synchronization, interpolation, electronic cam and more.
Q3: Can it directly replace the old 1769-L33ER?
A3: It can replace it in terms of functions. However, the hardware size and I/O modules are not compatible. Programs need migration via Studio 5000. We recommend upgrading matching modules together.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Allen-Bradley 5069-L330ERM!
