BECKHOFF EL1034 Technical Specifications
● Model:BECKHOFF EL1034
● Input Channels: 4 Channels
● Input Voltage: 24V DC
● Communication Protocol: EtherCAT
● Mounting Type: DIN Rail Mounting
● Operating Temperature: -25°C to +60°C
● Protection Rating: IP20
Core Advantages of BECKHOFF EL1034
● 10μs Ultra-fast Response, Effectively Avoiding Signal Failure
● Dedicated Two-wire Design for Wider Wiring Compatibility
● Independent Isolation for All Channels for Stronger Anti-interference Performance and Higher Stability
● Configuration-free & Easy Maintenance, Suitable for Various Automation Solutions
Why Choose BECKHOFF EL1034

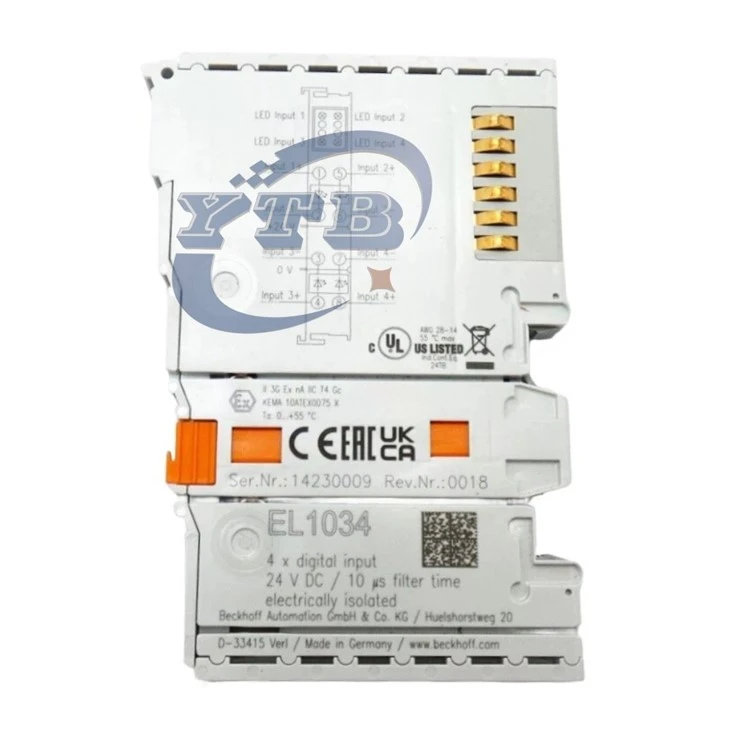

The BECKHOFF EL1034 is a 4-channel 24V DC passive digital input EtherCAT terminal module developed specifically for two-wire sensors, featuring high-speed signal acquisition, stable operation and strong versatility.
Equipped with a 10μs high-speed hardware filter circuit, the EL1034 delivers faster response. It can reliably capture rapidly changing field signals and effectively avoid issues such as signal lag, false triggering and signal loss, making it suitable for all kinds of high-speed acquisition working conditions.
Typical Application Scenarios
Automated Production Lines & Packaging Machines: Station position detection, high-speed switch signal acquisition and product positioning feedback
Logistics Sorting Equipment: High-speed acquisition of sorting trigger signals and photoelectric sensing signals
CNC Processing Equipment: High-speed feedback detection of machine axis origin and limit signals
Laboratory Test Tooling: Precision acquisition of multi-channel high-speed pulses and fast trigger signals
New Energy & Building Automation: Real-time monitoring and acquisition of sensor and switch status signals
Small and Medium-sized Non-standard Automation Equipment: High-precision high-speed point signal acquisition and equipment upgrading
Design Highlights
Improve efficiency
Material: Made of high-quality engineering plastic, it is wear-resistant and anti-aging. It adapts well to harsh factory environments, features good dust resistance and protects against minor corrosion.

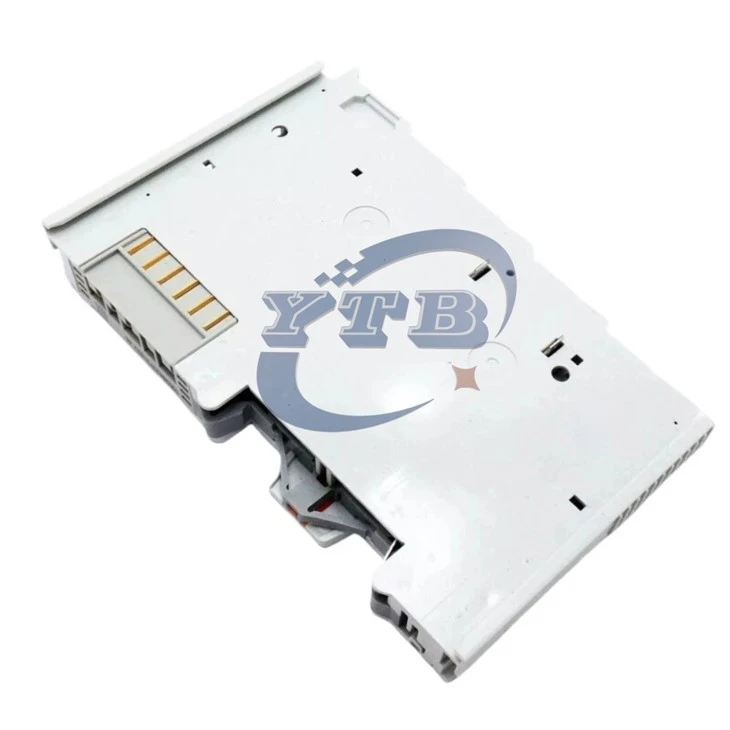

Appearance: Compact and small in size with standard industrial gray finish. The slim body saves plenty of space inside control cabinets. Built-in status indicators show real-time operating status clearly.
Design: Compatible with standard DIN rails for easy installation and removal. Well-arranged terminals enable simple and neat wiring. The integrated structure is lightweight while ensuring stable operation.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: How fast is the communication speed of the EL1034?
A1: The EL1034 adopts EtherCAT communication technology, offering fast data transmission to meet the real-time control requirements of most automation equipment.
Q2: What industries is the EL1034 suitable for?
A2: It is commonly used in industrial automation, production line equipment, packaging machinery, logistics conveying systems, and smart manufacturing industries.
Q3: Can the EL1034 operate stably for long periods?
A3: The module offers reliable overall stability and is suitable for long-term continuous operation, making it dependable for industrial applications.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the BECKHOFF EL1034!
