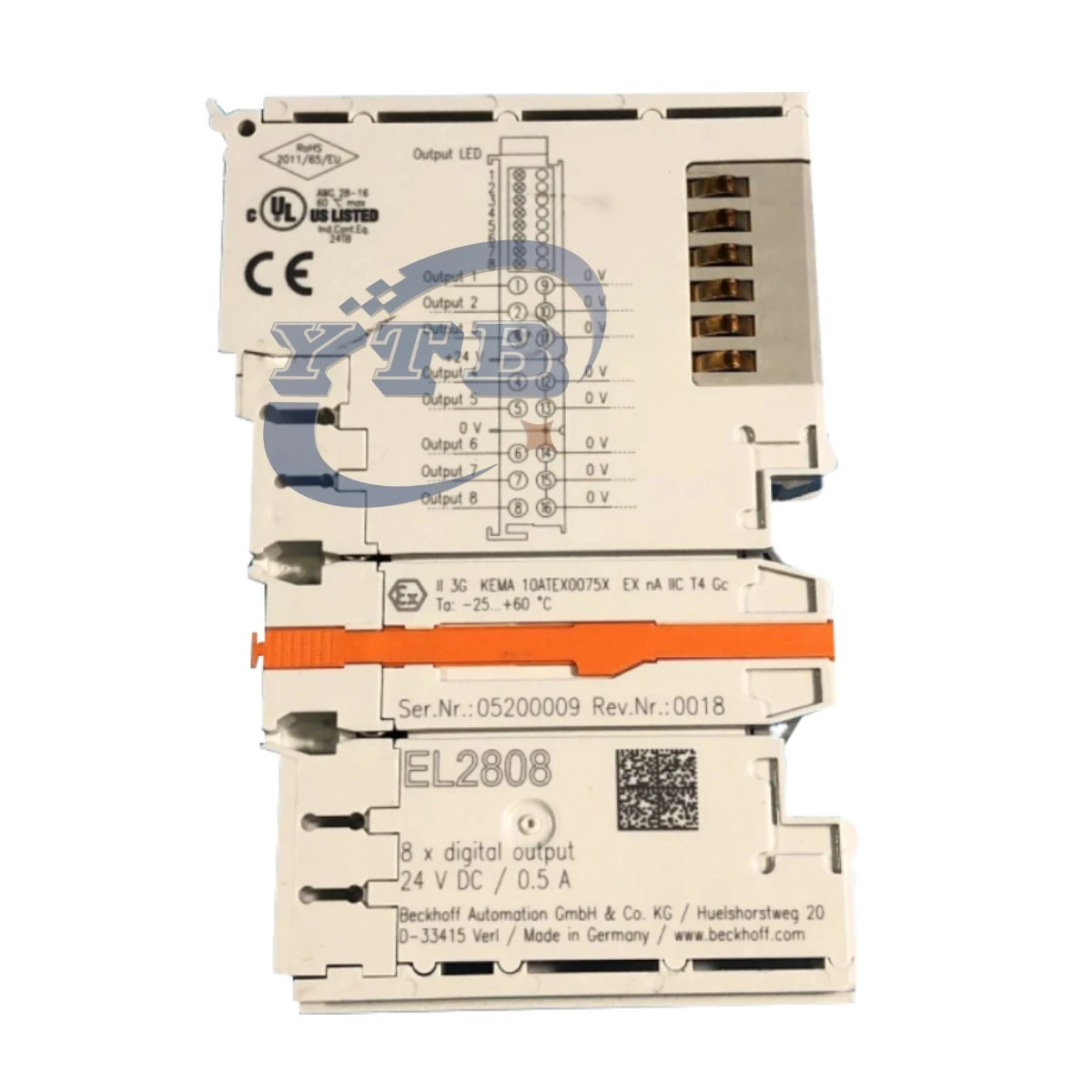

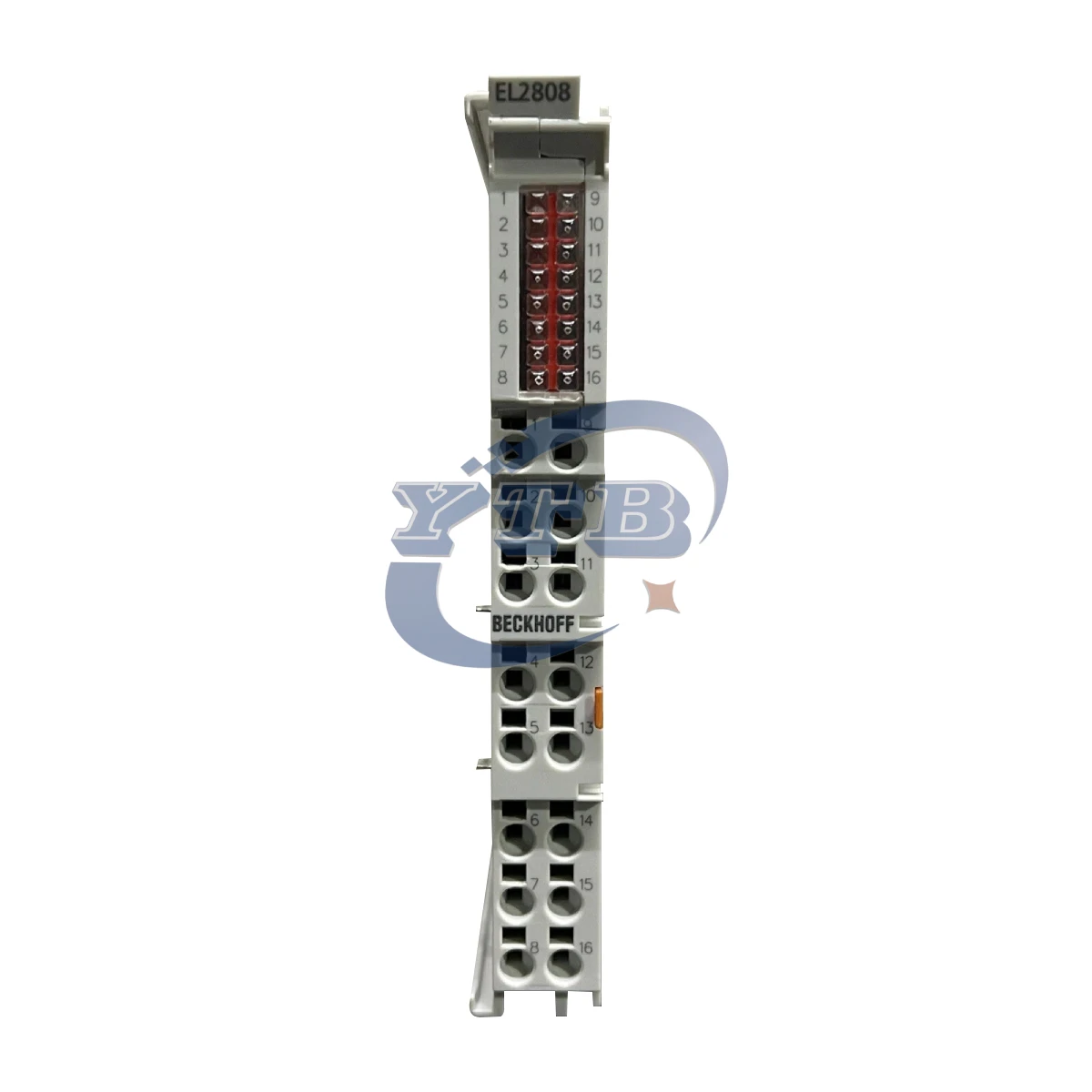

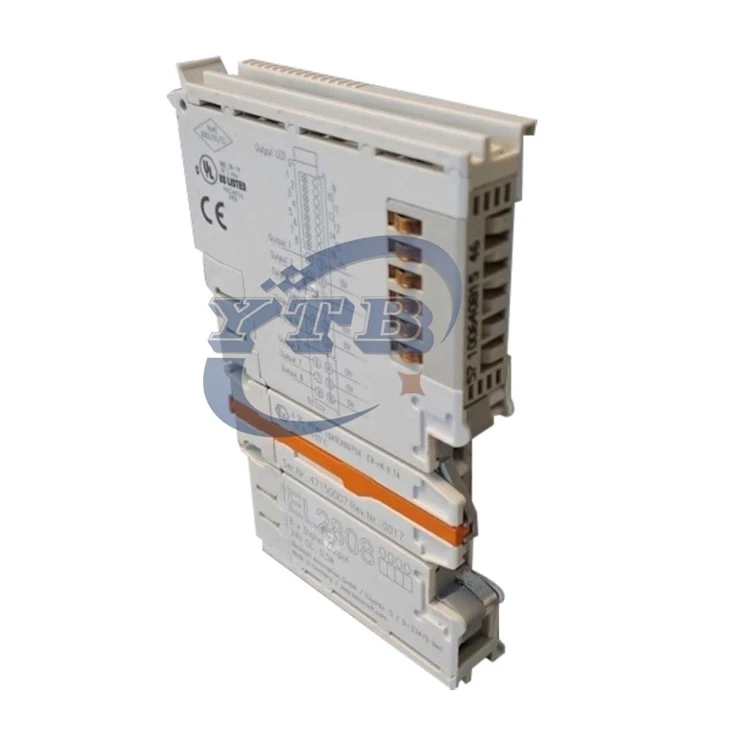

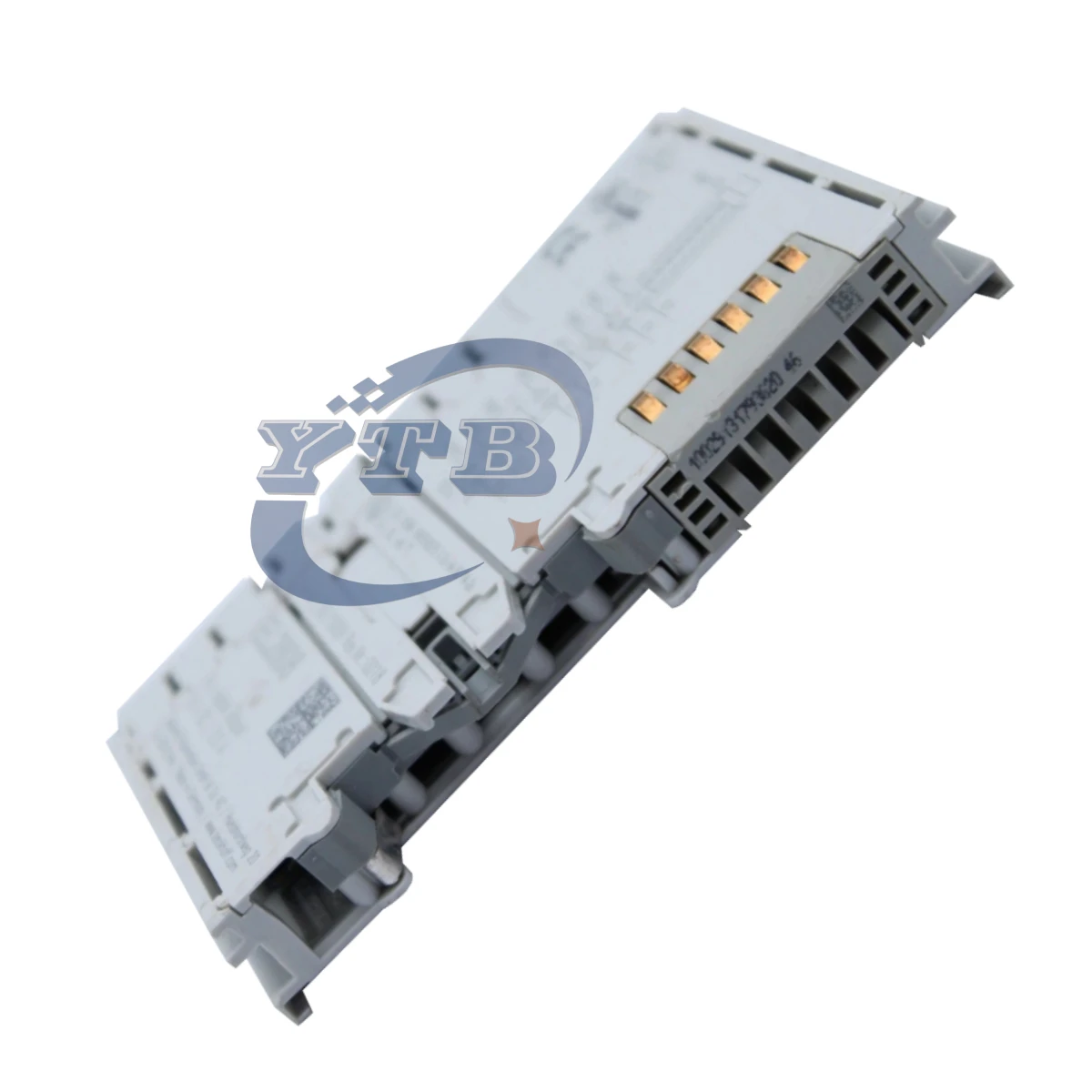

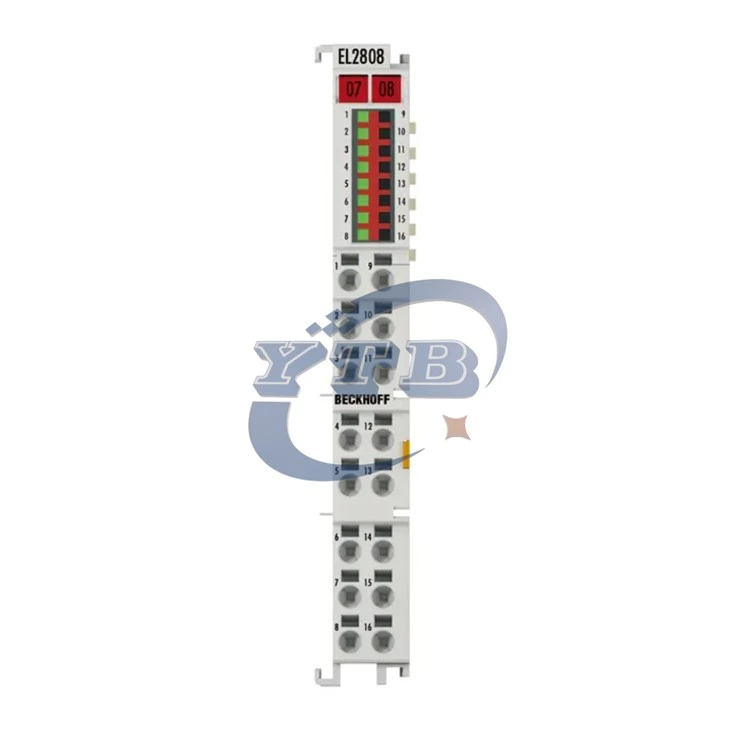

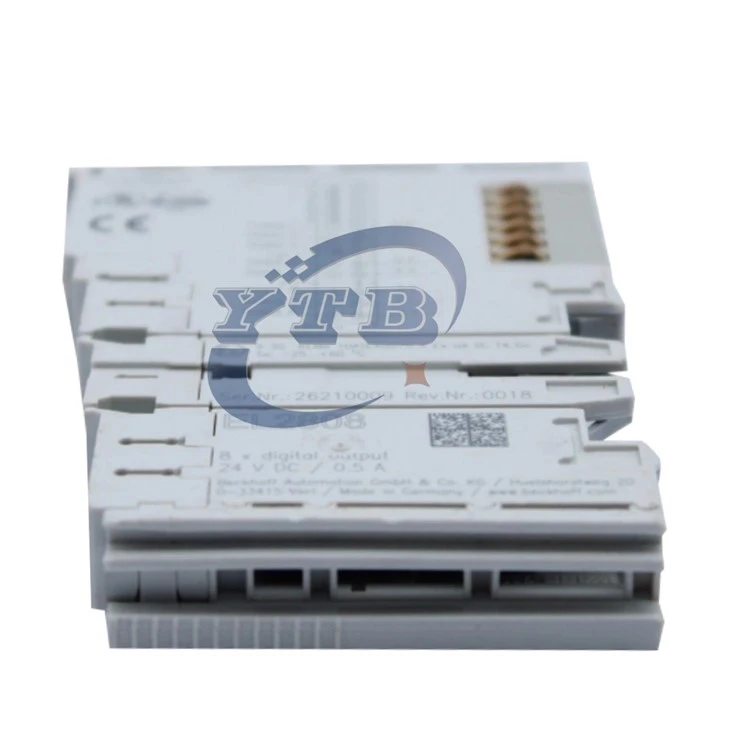

BECKHOFF EL2808 Technical Specifications
● Model: BECKHOFF EL2808
● Number of Channels: 8 independent digital output channels
● Rated Load Voltage: 24 V DC
● Rated Current per Channel: 0.5 A (with short-circuit protection)
● Short-Circuit Current: Typical value ＜2 A
● Inductive Switching Energy: ＜150 mJ per channel
● Switching Time: Typical turn-on 60 µs, typical turn-off 300 µs
● Process Image Bit Width: 8 output bits
● Distributed Clock Function: Not supported
● Daisy-Chain Power Contacts: Supported
● Module Width: 12 mm
● E-bus Current Consumption: Typical 65 mA
● Operating Ambient Temperature: -25℃ ~ +60℃
What is BECKHOFF EL2808?
Our super handy Beckhoff EL2808! It's an 8-channel output module with amazing compatibility. It can easily drive 24V solenoid valves, relays, and indicator lights commonly used in factories, making it compatible with most industrial control equipment - really versatile.This module is a real worry-free tool! It responds super fast, with devices operating quickly and accurately, no delays at all. It comes with short-circuit and overload protection, making it very safe to use on-site and practically impossible to burn out. Plus, it's compact and easy to install, and even under continuous 24/7 operation, it stays highly stable with minimal failures - a no-brainer for industrial automation!
BECKHOFF EL2808 Features & Benefits
8-channel high-density terminal, effectively reducing cabinet space occupation
Built-in triple protection circuits for stable and long-term field operation
Microsecond fast response ensures precise control without delay
Simple wiring structure for time-saving installation and troubleshooting
Industrial wide-temperature housing, applicable to harsh environments such as high and low temperature workshops
Usage Precautions
● The rated output current per channel is 0.5A. Long-term overload operation is prohibited.
● When driving inductive loads, the breaking energy per channel shall not exceed 150mJ. For high-power inductive loads, additional surge suppression components are recommended to extend the module service life.
● This module does not support distributed clock function and is not suitable for motion control scenarios requiring high-precision clock synchronization.
● The module has an IP20 protection rating and shall only be installed inside control cabinets to avoid direct erosion by dust and moisture.
Design Highlights
Improve efficiency
● Material:The EL2808 housing is made of industrial-grade durable materials, so it's not the kind of module that breaks with a light touch.
● Appearance:The module is compact and tidy, with a clean design and no unnecessary frills, fitting nicely in control cabinets without taking up much space.
● Design:All 8 output channels are integrated into a single module, with clearly arranged terminals that make wiring simple and reduce errors, making maintenance and troubleshooting much easier.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Does the module have built-in protection?
A1: Yes. It has built-in dual protection of short circuit and overload, which can effectively avoid module damage caused by abnormal circuits and wiring errors, ensuring safer use in industrial sites.
Q2: How is the compatibility?
A2: It has strong compatibility, supports standard EtherCAT bus, and can be seamlessly connected with various mainstream industrial control systems and automation equipment, suitable for new machine matching and old equipment renovation.
Q3: Is the EL2808 difficult to install?
A3: It is very easy to install. Adopting standard DIN rail buckle design, it can be assembled and disassembled manually. The clear terminal layout simplifies wiring and later maintenance.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the BECKHOFF EL2808!
