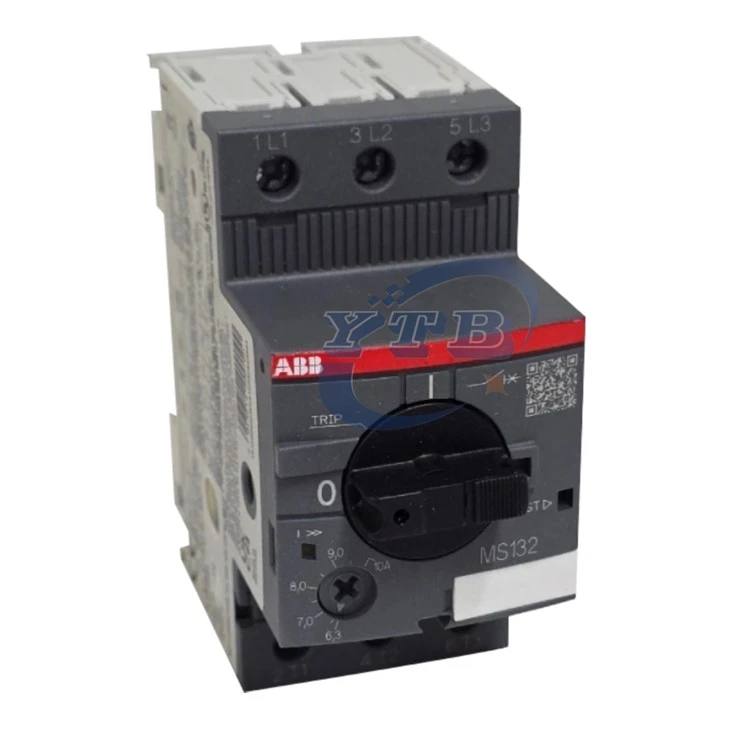

ABB MS132-10 High-Breaking Motor Protection Circuit Breaker

● Model Number:ABB MS132-10
● 6–10A 400V MPCB for 4kW Motors
● The ABB MS132-10 is a high-performance manual motor protection circuit breaker in ABB MS132 series, designed to protect small three-phase AC motors. It offers an adjustable current range of 6~10A and integrates overload, short-circuit and phase-loss protection to effectively prevent motor damage caused by abnormal operation.

Send Inquiry

ABB MS132-10 Technical Specifications

Model: ABB MS132-10

Adjustable current range: 6A ~ 10A

Tripping type: Thermal-magnetic trip, Trip Class 10

Max operating voltage: 690V AC

Rated insulation voltage Ui: 690V

Rated service short-circuit breaking capacity Ics (400V AC): 100kA Mounting: Clip-on for standard 35mm DIN rail

Typical suitable motor: 400V three-phase 4kW industrial motor

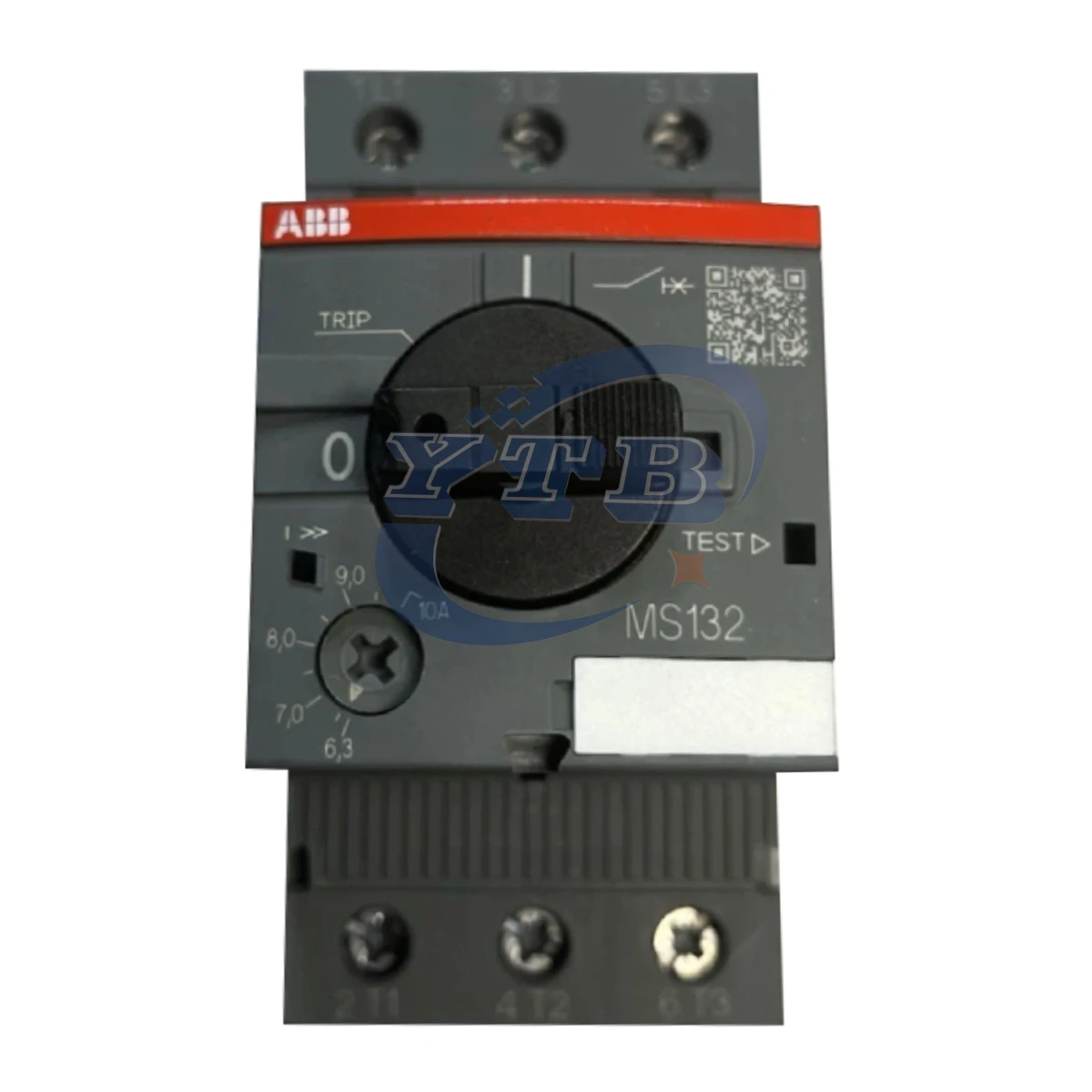

MS132-10 ABB Motor Protection Circuit Breaker

ABB MS132-10 Product Highlights

The ABB MS132-10 is part of ABB's MS132 high-breaking MPCB series.

• Continuously adjustable current setting: 6A～10A, ideal for 400V three-phase 4kW industrial motors

• Thermal-magnetic trip with Class 10 characteristic, prevents nuisance tripping during motor startup

• Rated 100kA Ics at 400V AC, operates reliably close to transformers under unstable grid conditions

• Delivers integrated overload, short-circuit and phase-loss protection for small three-phase motors

• Commonly applied in compact automation equipment, fans, pumps and light machinery

Motor Power Suitability for ABB MS132-10

The ABB MS132-10 is designed for the protection of small three-phase AC motors. Typical applications:

Approx. 4kW three-phase motors (400V)

Small water pump motors

Fan motors

Light conveyor drive motors

Motors for compact automation machinery

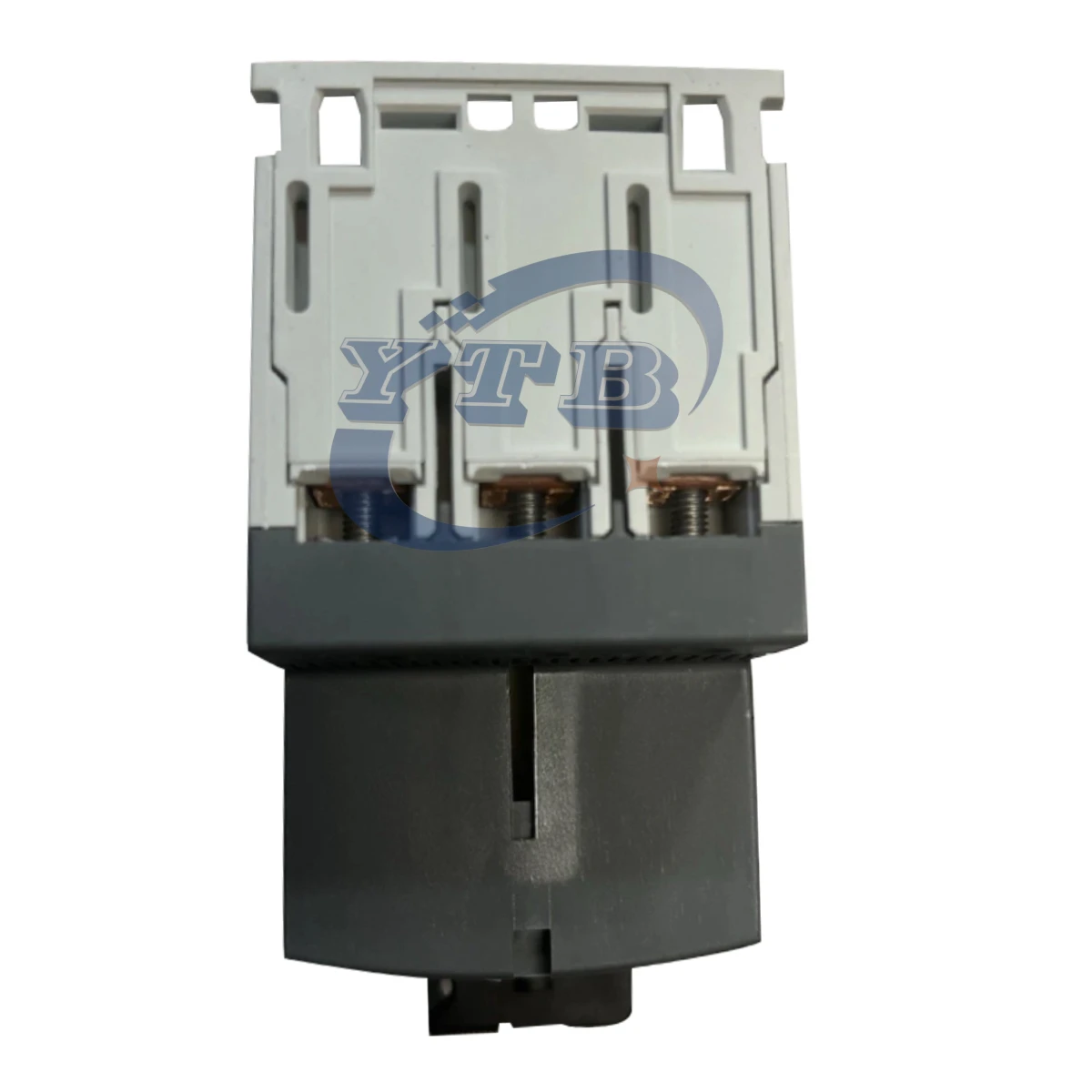

ABB MS132-10 MPCB Adjustable Motor Protector

How Does ABB MS132-10 Protect Motors?

The ABB MS132-10 adopts a professional thermal-magnetic tripping mechanism to monitor the operating status of three-phase motors, providing all-round protection against overload, short circuit and phase loss.

① Overload Protection (Thermal Trip) When the motor runs overloaded for a long time with excessive current, the thermal tripping mechanism cuts off the power to prevent motor overheating and burnout.

② Short-circuit Protection (Magnetic Trip) In case of sudden short-circuit faults, the magnetic trip reacts instantly to disconnect high fault current and protect electrical components.

③ Phase Loss Protection The MPCB detects phase failure and phase imbalance, and trips immediately to avoid motor overheating and coil damage caused by abnormal phase loss operation.

Design Highlights

Flame-retardant & heat-resistant housingThe ABB MS132-10 adopts industrial flame-retardant material, high temperature resistant and anti-aging, stable for harsh factory environments.

Visual manual adjustment design Equipped with clear current scale and control knob, supporting direct 6–10A manual setting for fast on-site commissioning.

Compact modular structure Mini 3P slim body fits standard 35mm DIN rail, saving cabinet space for dense wiring and compact automation equipment.

Aftersales Support

Quantity available: In stock.

Warranty: 12 months.

Lead time: Shipment within 3-5 working days.

Terms of payment: T/T. RMB (CNY) support.

Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.

FAQ

Q1: How to adjust the current setting of MS132-10? Does it need to match the motor rated current precisely?

A1: There is no need to set a higher value intentionally. Adjust the knob within the 6–10A range according to the rated current shown on the motor nameplate. Equipped with accurate scales for continuous adjustment, it complies with Trip Class 10. It prevents nuisance tripping during motor startup and protects the motor from damage caused by prolonged overload.

Q2: What special working conditions require 100kA high breaking capacity?

A2: It is designed for installations near transformers, grids with electrical noise and workshops with fluctuating loads. Ordinary circuit breakers may get damaged due to insufficient breaking capacity. The MS132-10 withstands 100kA short-circuit current at 400V, ideal for demanding environments such as small water pumps, light machinery and automated production lines.

Q3: Can MS132-10 be used for single-phase motors?

A3: Yes. This 3-pole MPCB works for 400V three-phase 4kW motors as well as single-phase motor circuits. It offers great flexibility for small non-standard equipment and control cabinet retrofits.

Q4: How can I place an order or apply for bulk purchase discounts?

A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.

For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the ABB MS132-10!
