BECKHOFF EL7201-0010 Technical Specifications
Model:BECKHOFF EL7201-0010
Control modes: Position control, speed control, torque control
Electronics: 24 V DC (via power terminals)
Power: 8–48 V DC (external)
Continuous current (RMS): 2.8 A
Peak current (RMS): 5.7 A (for 1 second)
Compatible motors: 48 V DC servo motors, power ≤ 200 W
Communication Protocol: EtherCAT
Mounting Type: Standard 35mm DIN-Rail Mounting
Dynamic response time: ≤ 50 μs
Operating Temperature:-25℃ ~ +60℃
Status indicators: 16 LEDs showing power, operation, faults, current, temperature, and more
Protection Rating: IP20
What is BECKHOFF EL7201-0010?
BECKHOFF EL7201-0010 is a single-channel EtherCAT servo drive designed primarily for controlling small servo motors. It supports a 48 V DC power supply with a rated output current of 2.8 A and features OCT (One Cable Technology), making wiring simpler and control cabinet layouts cleaner.The module also includes intelligent diagnostics and multiple protection functions, making it a reliable solution for applications such as automated positioning, precision motion control, and other industrial automation tasks.
Why Choose Beckhoff EL7201-0010?
● Innovative OCT (One Cable Technology) reduces wiring workload by up to 70%, significantly cutting wiring costs.
●High-performance servo control with very fast response. The module features built-in field-oriented current control and PI speed control algorithms, with a dynamic response time of less than 50 μs, capable of handling fast and highly dynamic positioning tasks.
●Intelligent diagnostics for safer operation. The module features 16 status LEDs that show real-time information on power, operation, faults, current, temperature, and more, making it easy to spot any issues at a glance.
● Seamless TwinCAT integration, easy setup.
Natively compatible with Beckhoff TwinCAT and CoE protocol, allowing quick parameter setup, motion programming, and commissioning without extra drivers, saving development time and reducing learning effort.
EL7201-0010 Application Scenarios
The EL7201-0010 is ideal for applications that require precise motion control. It can be used in automated production lines, electronics manufacturing equipment, medical devices, packaging machinery, laboratory automation systems, and small robots. Whether for positioning, speed control, or precise motion tasks, it delivers reliable performance.
Design Highlights
Improve efficiency
● Material:The housing is made of industrial-grade flame-retardant plastic, and the internal circuit board uses high-temperature resistant industrial-grade materials along with high-performance power components, ensuring long-term stable operation.

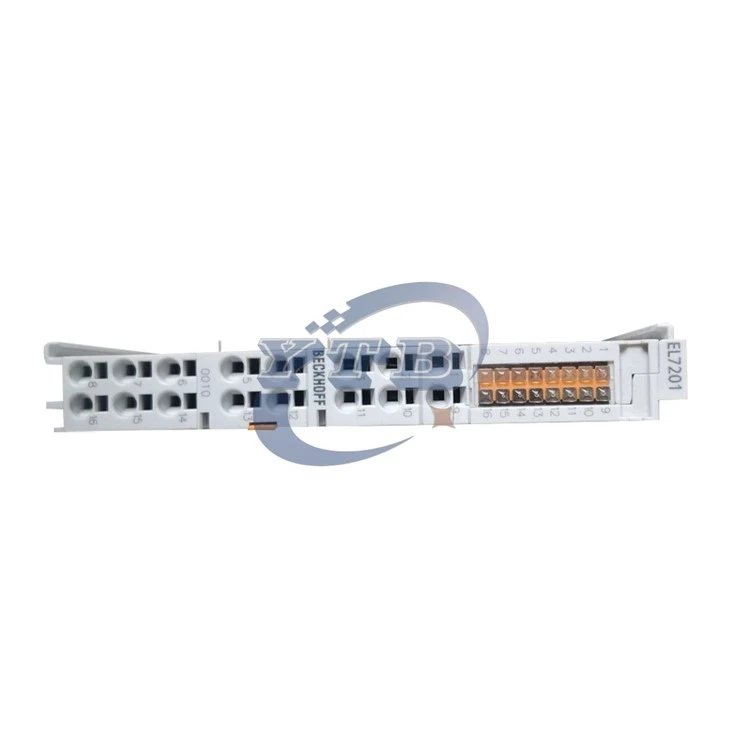

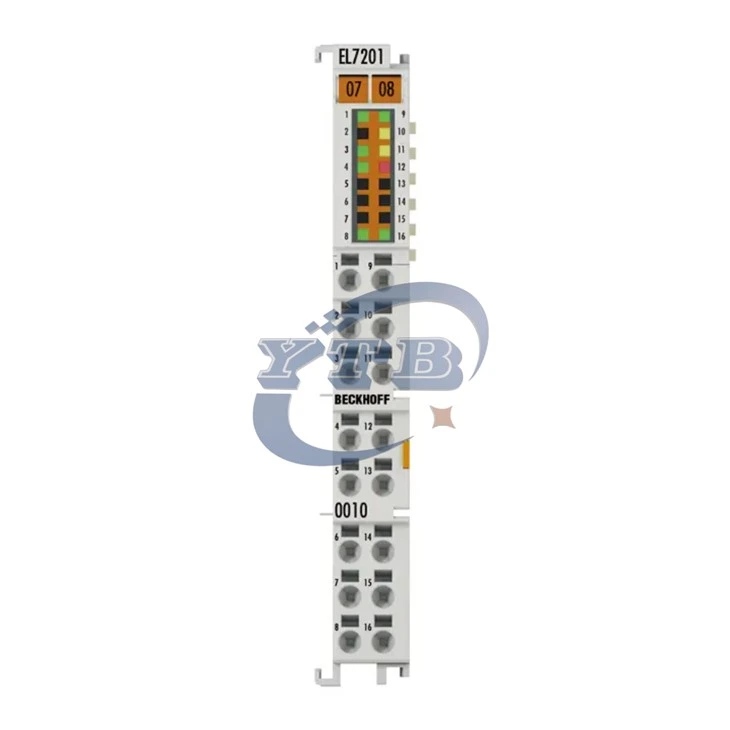

● Appearance:The module has clear channel markings, pin labels, and function descriptions on its surface, with colors following the brand's classic industrial style, giving it a neat and organized look. The 16 status LEDs are arranged in a row, making it easy to see the operating status at a glance, which is convenient for on-site personnel to check.
● Design:Ultra-compact design that really saves space. This module features a high-density terminal housing with a width of just 12 mm, allowing multiple modules to be mounted side by side on a standard 35 mm DIN rail, making it very space-efficient in control cabinets. It's especially suitable for automation equipment and distributed control systems with limited space. The module weighs only about 60 g, lightweight and easy to install, without adding extra load to the cabinet.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What servo motor power can the BECKHOFF EL7201-0010 support?
A1:This module is designed for 48V DC servo motors, optimally suited for motors with power ≤ 200W. It provides a continuous output current of 2.8A and a peak current of 5.7A (for 1 second), meeting the needs of small, precise motion control applications.
Q2: What is OCT single-cable technology, and what are its advantages?
A2: OCT (One Cable Technology) integrates the motor power line and encoder signal line into a single cable. Its advantages include reducing wiring work by 70%, lowering cable costs, avoiding signal interference, improving system reliability, and simplifying commissioning and maintenance.
Q3: Which control modes does the module support?
A3: It supports position control, speed control, and torque control. You can flexibly switch between these modes via TwinCAT software, making it suitable for various motion control scenarios such as positioning, speed regulation, and constant torque output.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the BECKHOFF EL7201-0010!
