BECKHOFF EL9010 Technical Specifications
Model:BECKHOFF EL9010
Core function: Bus-end impedance matching to suppress signal reflections.
Communication Protocol: EtherCAT
Mounting Type: Standard 35mm DIN-Rail Mounting
E-bus Current Consumption: 0 mA (no power consumption)
Operating Temperature:0℃ ~ +55℃
Protection Rating: IP20

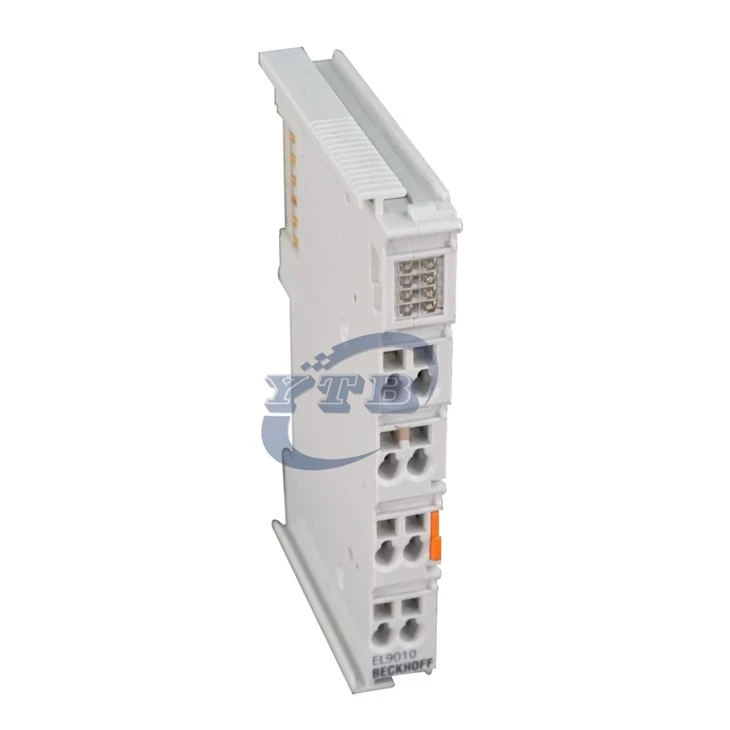

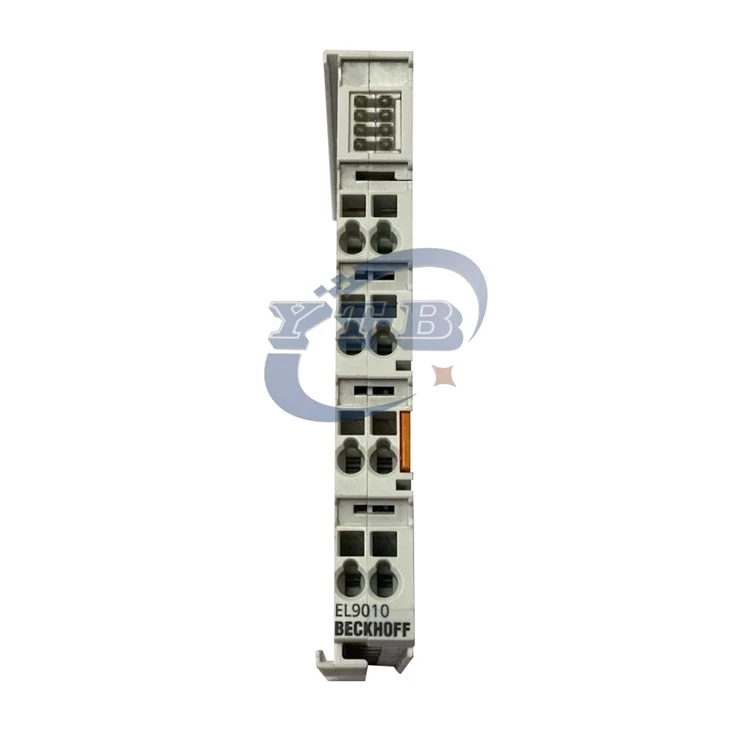

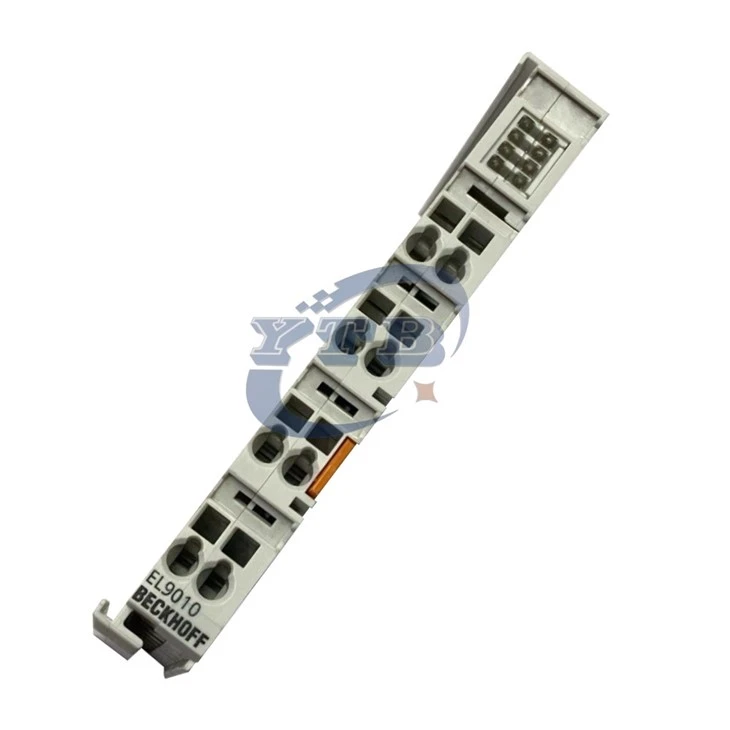

What is BECKHOFF EL9010?
Our BECKHOFF EL9010 is an end terminal module for EtherCAT systems. Although small in size, it is an essential component of the bus network. Installed at the end of the EtherCAT terminal chain, its main job is to provide proper bus termination, helping signals travel more reliably and reducing communication issues caused by signal reflections.The EL9010 features a pure hardware design, requiring no parameter settings or software configuration. Simply install it in place and it is ready to work. Following Beckhoff's classic compact EtherCAT terminal design, it can be mounted alongside other I/O modules on a standard DIN rail without taking up extra space.
Why Choose Beckhoff EL9010?
● Built-in EtherCAT termination resistors reduce signal reflection, making communication more stable.
●Can be used directly with Beckhoff EtherCAT I/O modules, power terminals, and other products, offering excellent compatibility.
● The module itself does not consume E-bus current, so connecting it won't affect the power or communication of other modules, keeping the system load unchanged.
EL9010 Application Scenarios
EL9010 is compatible with most EtherCAT automation projects and widely used in production lines, robot systems, remote IO stations and non-standard equipment. Install it at the end of the bus to optimize signals and suppress interference. It is suitable for new projects, equipment retrofits and smart factory applications, ensuring stable and smooth bus communication.
Design Highlights
Improve efficiency
● Material:The EL9010 housing is made from industrial-grade flame-retardant material that resists dust, vibration, and wear. It is well suited for demanding workshop environments. Inside, it uses high-precision resistor components that remain stable over long periods of operation without drifting from their specified values.
● Appearance:The overall design is very simple, with no active electronic components or indicator LEDs. This straightforward and durable structure helps reduce the risk of failures and minimizes maintenance requirements over time.
● Design:The module is a completely passive hardware device with zero power consumption. It requires no configuration and no parameter settings-simply install it and it is ready to work. It is specifically designed and optimized for EtherCAT bus termination applications, making installation easy and reliable.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: When is it necessary to use the EL9010 termination module?
A1: The EL9010 is recommended when EtherCAT bus wiring runs over long distances, when a large number of I/O nodes are connected to the bus, or when the installation environment has significant electromagnetic interference. Installing it at the end of the bus helps improve communication quality and ensures stable system operation.
Q2: Where should the EL9010 be installed in the bus system?
A2: It must be installed at the very end of the EtherCAT terminal chain as the final device in the bus network. It should not be installed in the middle of the chain, as this may affect normal communication.
Q3: Does the EL9010 require configuration in TwinCAT software?
A3: No. The EL9010 is a completely passive hardware accessory. Once connected to the DIN rail and EtherCAT bus, it works immediately without any software configuration, address assignment, or parameter settings. Simply install it and it is ready for use.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the BECKHOFF EL9010!
