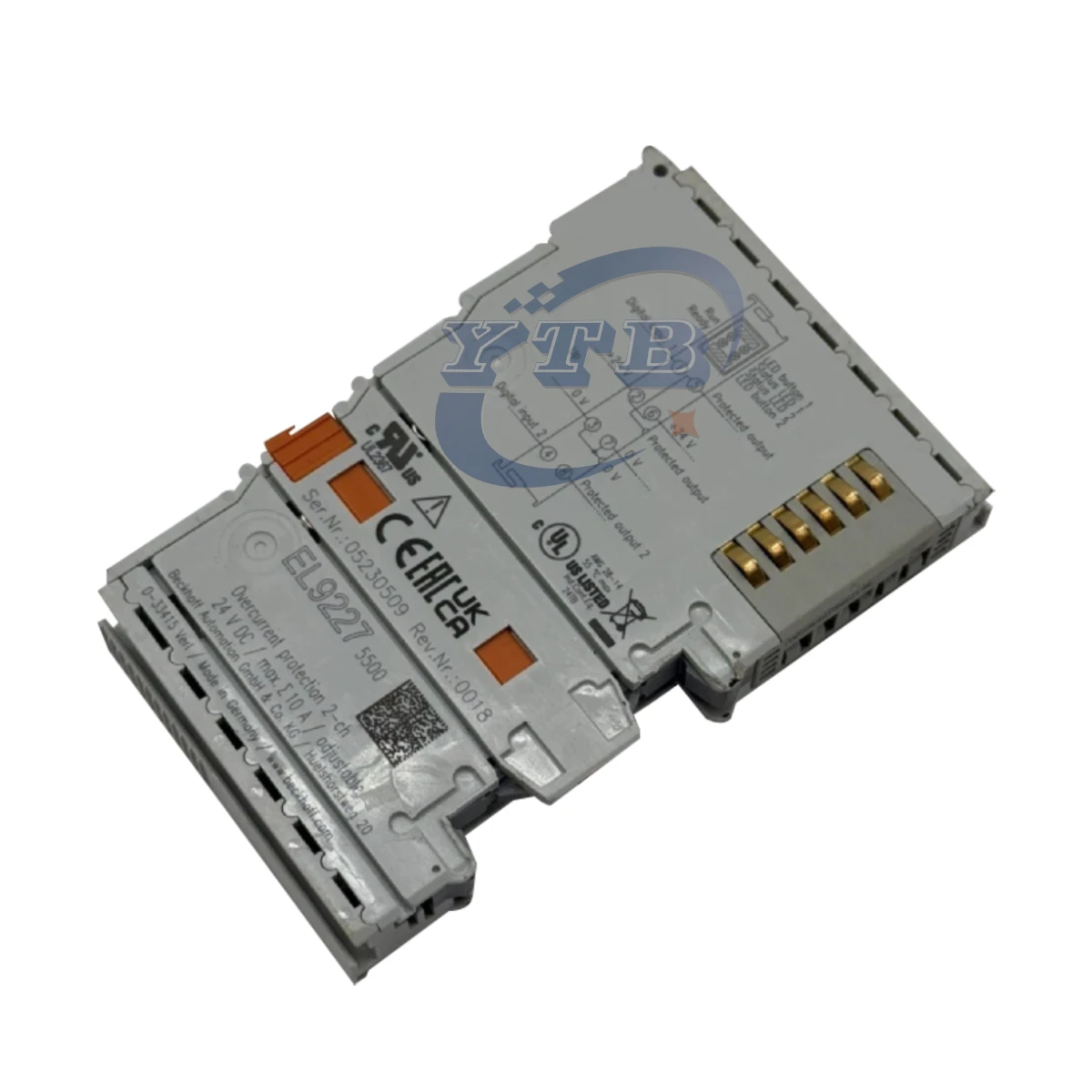

BECKHOFF EL9227-5500 Technical Specifications
Model:BECKHOFF EL9227-5500
Operating voltage: 24 V DC (19.2 V – 28.8 V)
Number of channels: 2 independent channels
Rated current range: 1–10 A, adjustable in 1 A increments, with a total current of ≤ 10 A.
Communication Protocol: EtherCAT
Mounting Type: Standard 35mm DIN-Rail Mounting
Operating Temperature:0℃ ~ 40℃
Protection functions: Overcurrent protection, short-circuit protection, and warning output
Reset methods: Mechanical button reset and remote software reset
Protection Rating: IP20
What is BECKHOFF EL9227-5500?
The Beckhoff EL9227-5500 is a dual-channel 24V DC electronic
overcurrent protection terminal for EtherCAT systems, safeguarding field equipment and wiring.
1.Unlike traditional fuses, it automatically detects overcurrent and cuts off the faulty circuit, plus delivers real-time status feedback for convenient monitoring.
2.Two channels operate independently, bringing more flexibility for different applications.
3.Well suited for production lines, robot systems, remote PLC I/O stations and various industrial automation setups.
4.It boosts equipment safety and simplifies fault diagnosis, lowering maintenance workload and ensuring stable system operation.
Why Choose Beckhoff EL9227-5500?
● Smart adjustable protection, compatible with various loads
● Dual-channel independent protection for better cost-performance
● Supports remote reset, making maintenance hassle-free
● Easy to install with strong compatibility
EL9227-5500 Application Scenarios
The EL9227-5500 is suitable for most EtherCAT automation applications. In production lines, it can protect 24 V circuits for PLCs, sensors, and actuators. In robotic systems, it helps safeguard end-effectors and servo drives. It is also well suited for distributed remote I/O stations and various custom automation equipment.When integrated into smart factory systems, it allows real-time monitoring of power status and helps identify potential issues before they become faults. Whether for new machine builds, upgrading existing equipment, or implementing Industry 4.0 production lines, the EL9227-5500 provides reliable overcurrent protection and status monitoring to keep the entire system running smoothly and safely.
Model Selection Comparison for the Same Series
Improve efficiency
EL9227-5500: Dual-channel adjustable overcurrent protection, max total current 10 A, fully expanded diagnostic functions. Suitable for most standard industrial load applications.
EL9227-0000: Dual-channel adjustable overcurrent protection, max total current 4 A with NEC Class 2 certification. Designed for low-power precision loads.
EL9222-5500: Basic dual-channel overcurrent protection module without full extended diagnostics. Ideal for general simple protection requirements.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: How does the EL9227-5500 work with TwinCAT software?
A1: The EL9227-5500 can be fully configured through TwinCAT, including rated current settings, protection characteristic selection, and warning threshold adjustments. Once connected to the EtherCAT network, the module is automatically detected by TwinCAT, with no additional driver installation required.
Q2: Can the current be adjusted using both the mechanical button and software?
A2: Yes. The EL9227-5500 supports both adjustment methods. The mechanical button is convenient for quick on-site settings, while TwinCAT software is ideal for remote configuration, monitoring, and batch parameter management.
Q3: The EL9227-5500 has a total current limit of 10 A. How can the current be distributed between the two channels?
A3: The combined current of both channels must not exceed 10 A. For example, it can be configured as 6 A + 4 A, 5 A + 5 A, or other combinations, depending on the actual load requirements.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
