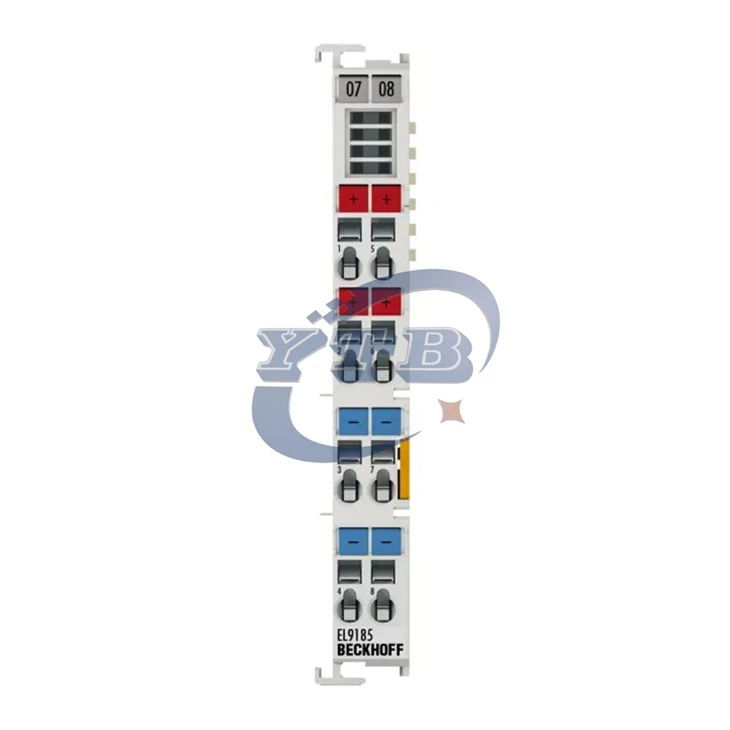

BECKHOFF EL9185 Technical Specifications
Model:BECKHOFF EL9185
Potential distribution: 4 × 24 V DC, 4 × 0 V DC
Output channels: 8 channels
Rated voltage: Any voltage up to 230 V AC/DC
Maximum current carrying capacity: 10 A (internal power contacts)
Communication Protocol: EtherCAT
Mounting Type: Standard 35mm DIN-Rail Mounting
Process image width: 0 bits (no process data)
Power supply: No additional power supply required (potential distribution via the E-bus)
Electrical Isolation: 500 V (between E-bus and field side)
Operating Temperature:-25℃ ~ +60℃
Protection Rating: IP20
What is BECKHOFF EL9185?
BECKHOFF EL9185, is a high-performance EtherCAT terminal module for potential distribution and digital output, specially designed for industrial automation systems. It not only distributes and supplies power to other terminal modules in the system, but also supports high-speed switching to ensure stable and reliable signal output. Compact and easy to install, it fits standard DIN rails, and its modular design makes expansion and maintenance simple. This makes the entire EtherCAT system's power and control more efficient and stable-an indispensable helper in industrial automation applications.
Why Choose Beckhoff EL9185?
●Strong load capacity – It can supply power to multiple EtherCAT terminals or field devices with high current demands at the same time, making it easy to handle high-power applications.
●Potential feed-through design – Multiple EL9185 modules can be connected in series, providing greater flexibility and making system expansion much easier.
●Quick and easy wiring – Installation is straightforward and can be completed without complicated tools, saving both time and effort.
●Independent potential distribution – Each potential point is clearly marked for easy identification and connection, helping simplify system wiring and reduce installation complexity.
EL9185 Application Scenarios
As a commonly used potential distribution module in industrial automation, the BECKHOFF EL9185 can simultaneously handle power supply and control signal distribution for devices. It is suitable for automated production lines, robot control systems, PLC expansion modules, and similar equipment. In industrial settings that require high-speed digital outputs and multi-channel potential distribution, it delivers full performance, helping automation systems run smoothly and efficiently.
Design Highlights
Improve efficiency
● Material:The EL9185 is made from durable industrial-grade plastic that feels solid and is built to withstand demanding industrial environments. It remains reliable even during long-term operation.
● Appearance:With its compact and streamlined design, the module fits neatly into control cabinets without taking up much space. Its clean and simple appearance helps keep system layouts organized.The terminal layout is clear and well arranged, making wiring straightforward and convenient. The standard DIN rail mounting design also makes installation, removal, and maintenance quick and hassle-free.
● Design:The EL9185 is designed with a through-type potential distribution structure, allowing the power contacts to connect directly with adjacent terminals for continuous potential transfer. When additional distribution points are needed, multiple EL9185 modules can be easily combined without complicated rewiring. This makes the system more flexible and convenient to use, meeting the needs of automation projects of various scales.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipped the same day.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What is the main function of the BECKHOFF EL9185?
A1: This module is a potential distribution EtherCAT terminal. Its main function is to provide 4 × 24 V DC and 4 × 0 V DC independent potential distribution points, support a high current capacity of up to 10 A, and obtain power directly from the front terminal contacts without additional terminal blocks, enabling efficient potential distribution and signal connection.
Q2: What is the maximum current carrying capacity of the EL9185?
A2: The internal power contacts support a maximum current load of 10 A, allowing simultaneous power supply to multiple EtherCAT terminals or field devices with high current demands, meeting the power distribution needs of complex automation systems.
Q3: Does the module require an additional power supply?
A3: No additional power supply is needed. The EL9185 obtains power via the E-bus potential distribution, connecting directly from the front terminal contacts and passing it to the adjacent module on the right, achieving efficient potential distribution.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the BECKHOFF EL9185!
Hot Tags: beckhoff el9185 ethercat potential distribution terminal module, China beckhoff el9185 ethercat potential distribution terminal module manufacturers, suppliers, factory, BECKHOFF EK1100 Bus Coupler, BECKHOFF EL1904, BECKHOFF EL1904 Safety Input Module, BECKHOFF EP2328 0002, BECKHOFF EP2328 0002 EtherCAT Terminal Box, EP2328-0002
