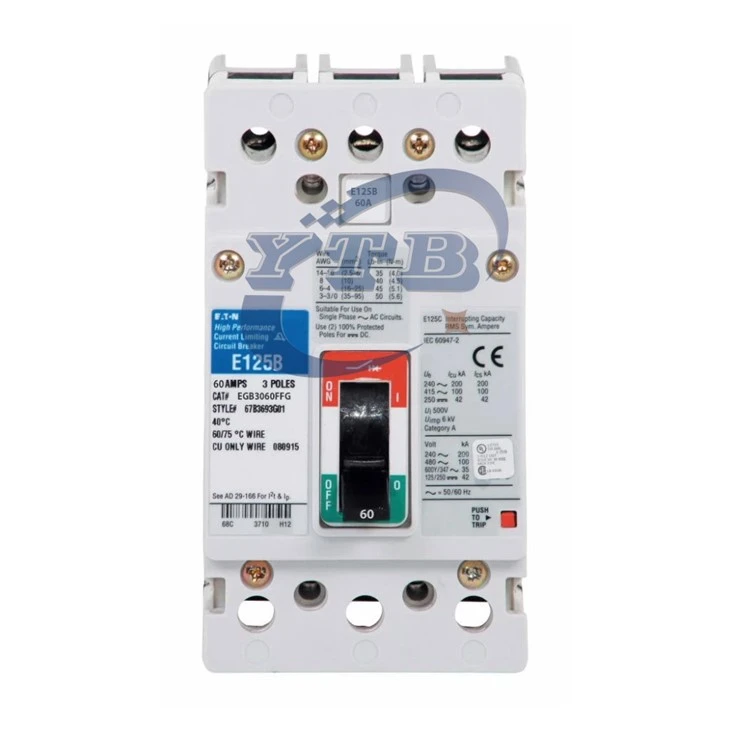

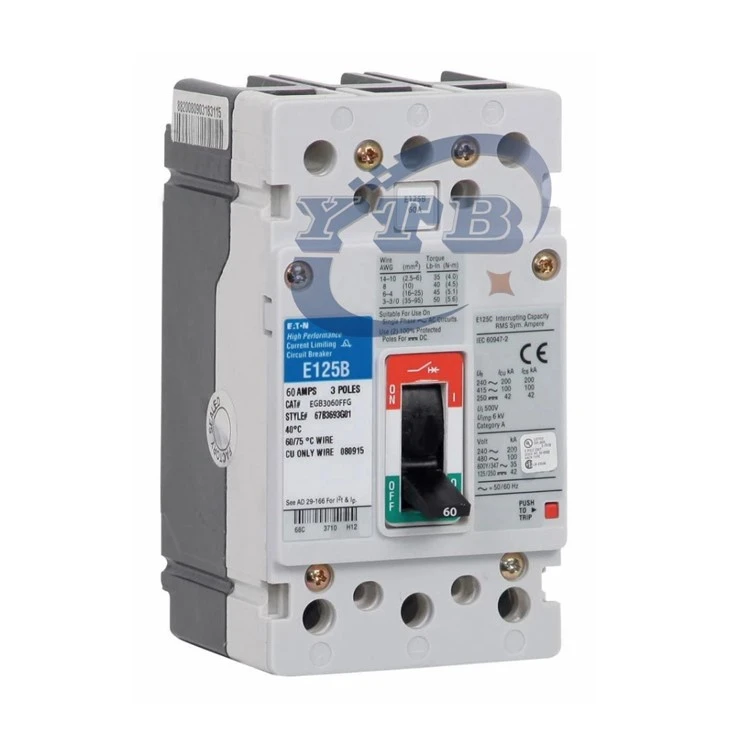

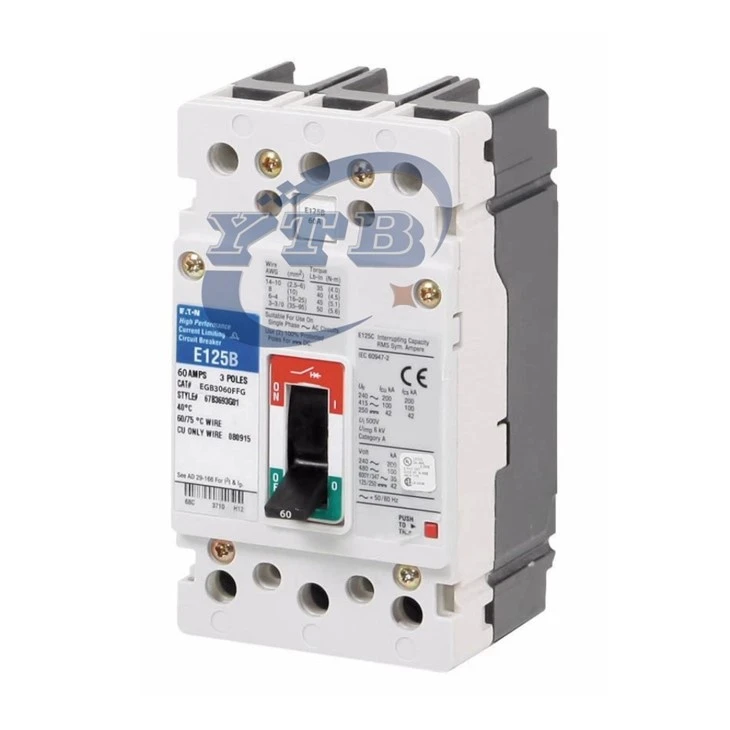

What is the Eaton EGB3060FFG?
● Simply put, the Eaton EGB3060FFG is a 3-pole, 60A thermal-magnetic molded case circuit breaker from Eaton Series G with an EG frame size, also referred to as an MCCB in the automation industry. Fundamentally, it acts as a safety protection switch for low-voltage power distribution circuits.
● When the circuit is overloaded and abnormal heating occurs due to excess current, it trips with a time delay. In the event of an unexpected short circuit, it cuts off power instantly to prevent equipment burnout and lower potential safety risks.
● Moreover, the EGB3060FFG is a classic model with a compact design that fits neatly inside control cabinets. It can also serve as a direct drop-in replacement for older breakers without any extra modifications, delivering excellent usability. It is widely adopted in all kinds of industrial low-voltage power distribution applications.
Eaton EGB3060FFG Technical Specifications
● Model:Eaton EGB3060FFG
● Number of Poles: 3 Pole
● Rated Current: 60A
● Rated Voltage: 600Y/347 VAC
● Operation Type: Toggle Handle Operation
● Protection Functions: Overload Protection + fhort-circuit Protection
● Installation Type：Compatible with standard industrial control cabinet structures.
Why Buy Eaton EGB3060FFG From Us?
● Every Eaton EGB3060FFG we carry comes straight from authorized, trusted supply partners. They hold up reliably in industrial distribution panels, control cabinets and automation setups - you won't run into unexpected performance issues out on the job.
● Working on a full engineering project or placing a bulk order? Reach out to our sales team directly. We can lock in more competitive pricing based on your order size and specific project needs.
● Orders typically ship within 3 business days once confirmed. We also line up the best logistics options for your region, to speed up delivery and cut down on how long you wait for parts.
Why Choose EGB3060FFG for Old Cabinet Replacement?
● Lots of buyers and maintenance technicians pick this breaker to swap out worn-out or faulty old breakers inside power cabinets. It's built on Eaton's standard Series G EG frame, with identical overall dimensions and mounting holes as older equivalent Eaton and Cutler-Hammer models, making it a drop-in replacement with zero modifications needed.
● Installation on site is super straightforward. There's no need to drill new cabinet holes or rewire existing circuits - you just remove the old unit and fit the new one right in its place. Whether you're replacing a broken breaker or carrying out full power system upgrades, it cuts down working hours significantly and saves extra costs for cabinet reconstruction.
Installation & Optional Accessories
Improve efficiency
● It supports both panel mounting and DIN rail mounting.
● It fits all common cabinet types with flexible installation options.
● Standard accessories including auxiliary contacts, shunt trips and alarm contacts can be easily fitted on site.
Causes of Tripping & Troubleshooting
Don't panic when the circuit breaker trips. You can check these common issues by yourself first:
● Overload tripping: The total current of downstream equipment exceeds 60A, or frequent motor startups cause overheating. Verify whether the load power matches the breaker rating and cut down the number of devices running at the same time.
● Short-circuit tripping: It trips instantly if there is a short circuit in wiring or equipment. Cut off power first and check for damaged cables or burnt machinery.
● False tripping: If the load is normal yet the breaker trips often, check if the ambient temperature is too high or if the terminal connections are loose.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What is Eaton EGB3060FFG used for?
A1: It provides circuit protection for low-voltage industrial and commercial power distribution systems to prevent equipment damage caused by overloads and short circuits.
Q2: Can EGB3060FFG be used for motor circuit protection?
A2: Yes. Its thermal-magnetic trip characteristics match the starting current characteristics of motors, so it can be directly applied to overload and short-circuit protection of small motor circuits. When combined with Eaton motor control components, it can obtain UL508 SCCR certification.
Q3: Does EGB3060FFG support reverse feed?
A3: Yes. This model allows bidirectional line feeding. No extra accessories are required for the configuration where power feeds from the bottom and exits at the top, and its interrupting performance remains unaffected.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Eaton EGB3060FFG!
