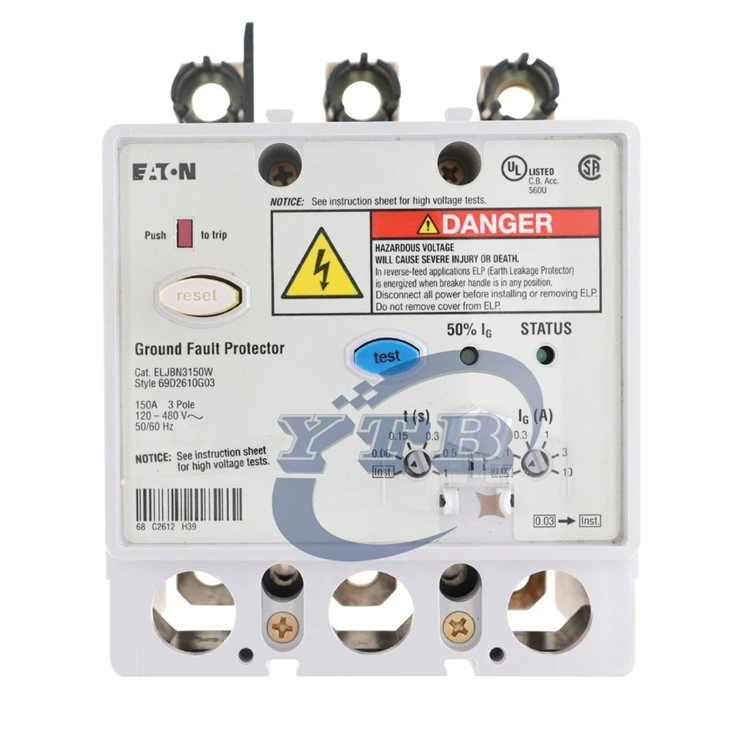

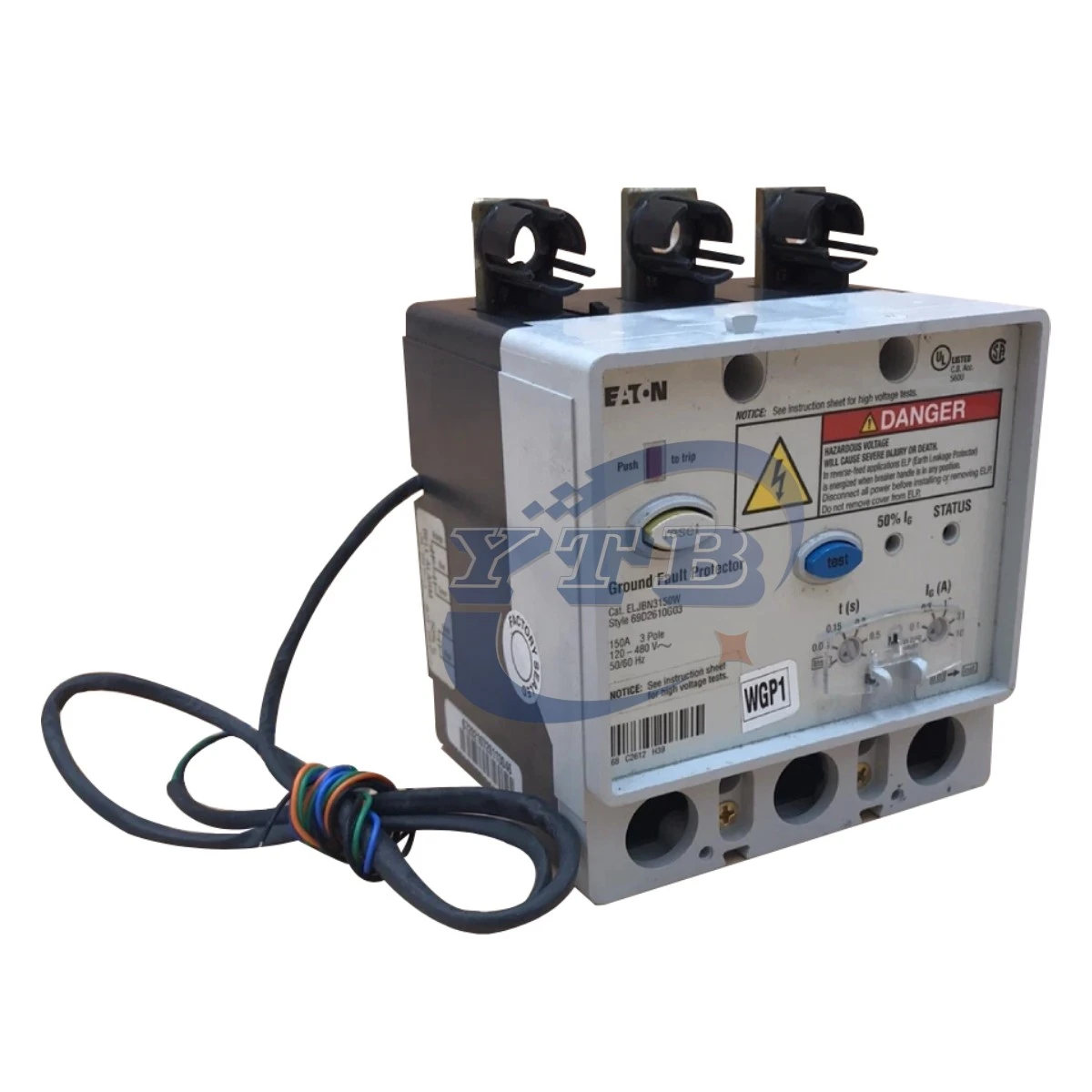

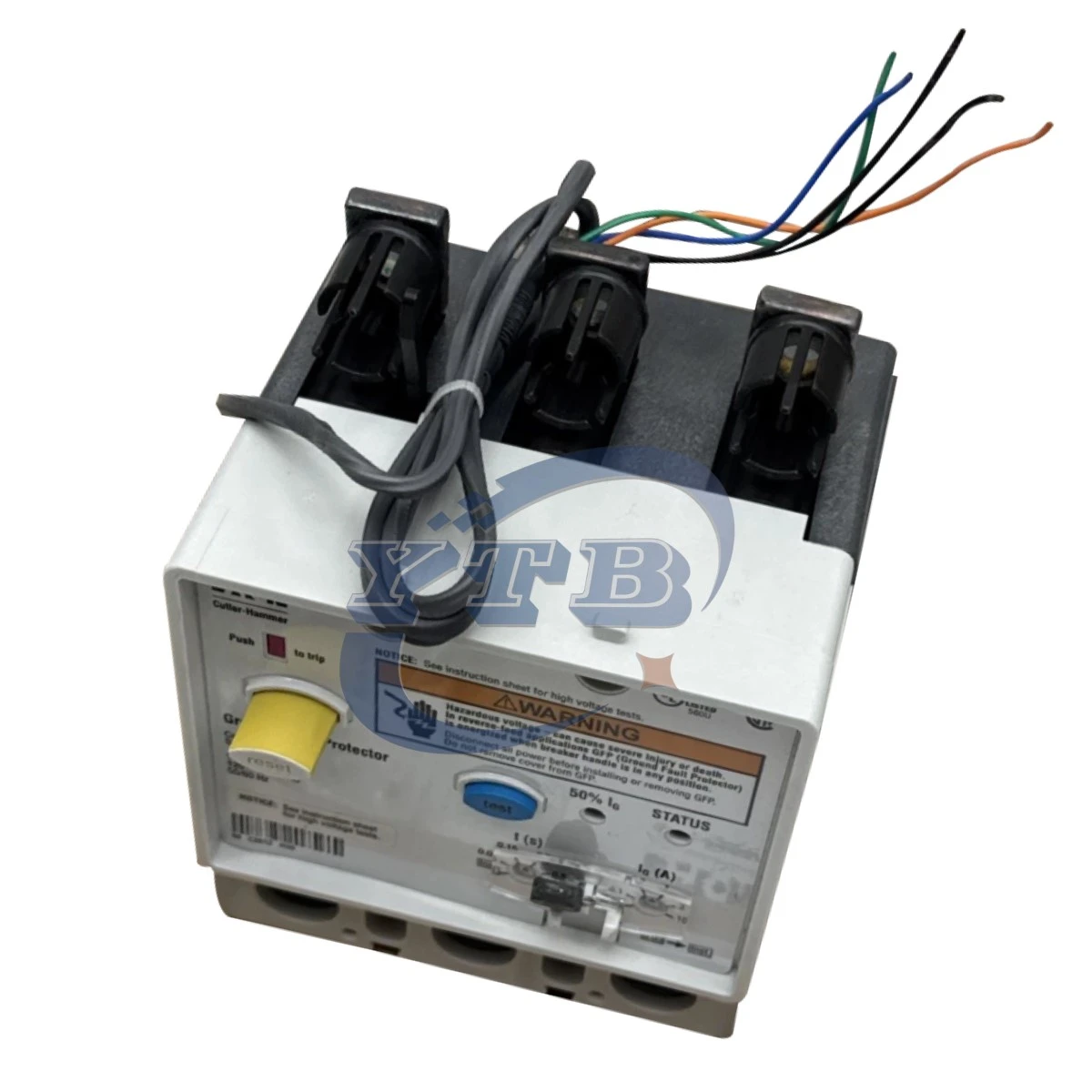

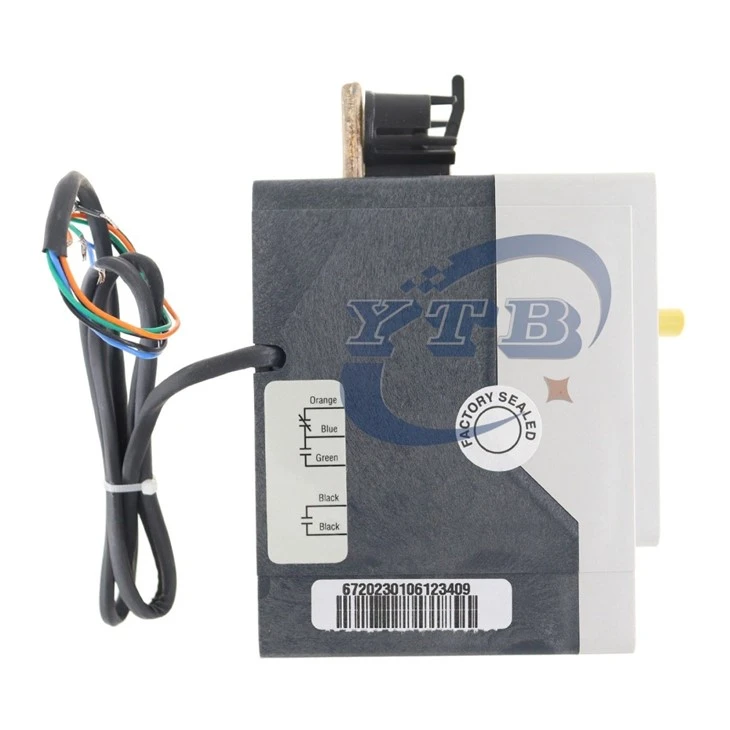

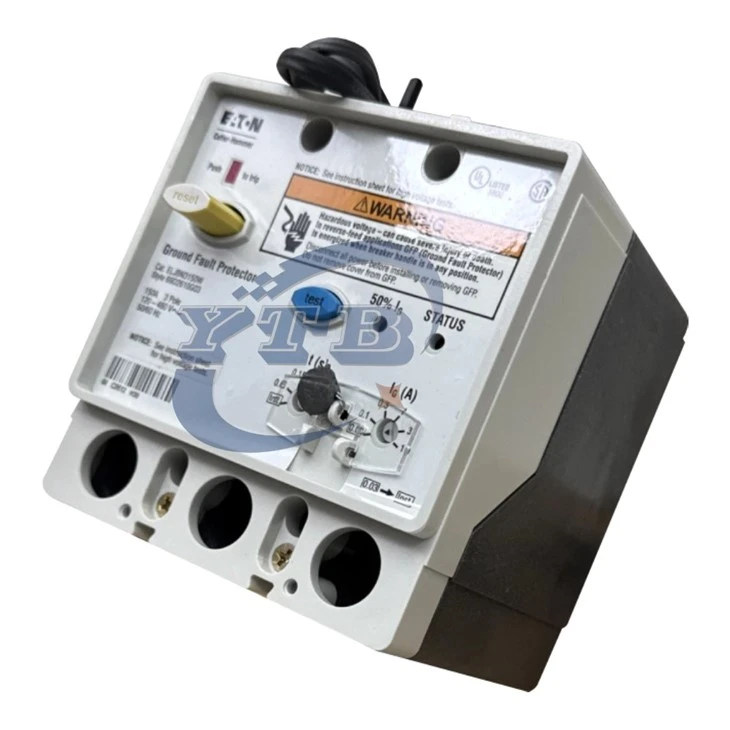

What is Eaton ELJBN3150W Circuit Breaker?
● The Eaton ELJBN3150W is an integrated ground fault protective molded case circuit breaker (MCCB with earth leakage protection) within the JG frame of Eaton Corporation's Series G line.
● This model integrates three core protection functions: overload protection, short-circuit protection and ground fault protection. No additional ground fault modules or accessories are required to deliver a complete electrical protection solution, making it ideal for industrial power distribution systems with strict safety requirements.
Application Advantages of ELJBN3150W
This breaker is ideal for industrial sites with strict electrical safety standards, such as:
● Main power distribution circuits in factories
● Motor Control Centers (MCC)
● Power supply circuits for heavy machinery
● Power distribution for automated production lines
Its all-in-one design eliminates the need for extra accessories, simplifying the overall circuit layout and cutting costs on installation and maintenance.
Eaton ELJBN3150W Technical Specifications
● Model:Eaton ELJBN3150W
● Series: Series G / JG Frame
● Number of Poles: 3P
● Rated Current: 150A
● Rated Voltage: 480V AC
● Frequency: Compatible with 50Hz / 60Hz
● Application: Industrial power distribution and ground fault protection systems
Model Code Explanation
Meaning of Each Letter and Digit in ELJBN3150W:
● EL: Earth Leakage protected unit
● JB: Designation for JG frame molded case circuit breakers
● N: Breaking capacity class
● 3: 3-pole construction
● 150: Rated operating current of 150A
● W: Product structure / version identifierprove efficiency
Material, Appearance & Structural Design
Material：
The material features high temperature resistance and anti-aging properties, so it won't deform or yellow even after long-term operation in hot, enclosed cabinet environments. Its reliable insulation prevents potential leakage hazards.
Appearance：
Built to standard JG frame dimensions with clearly marked model and ratings, it fits neatly inside cabinets without taking up extra space.
Design：
It integrates overload, short-circuit and ground fault protection all in one unit. No separate ground fault module is required, eliminating extra accessories and wiring for a cleaner overall power circuit.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Is this just a separate ground fault module or a complete circuit breaker?
A1: It is an all-in-one complete circuit breaker with built-in overload, short-circuit and ground fault protection functions. It is not an add-on accessory and can be wired into the circuit directly out of the box.
Q2: Can it be used on 220V/380V circuits?
A2: Its rated voltage is 480V AC, and it is backward compatible with AC circuits of lower voltage levels such as 380V. All ground fault and protection functions work normally.
Q3: Is ELJBN3150W complicated to install?
A3: Not at all. This model features a modular design for the Series G / JG Frame system. It can be installed following standard circuit breaker procedures and fits standard industrial electrical cabinet structures.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Eaton ELJBN3150W!
