Technical Parameters of Schneider TM241C24R
Model: TM241C24R
Power supply: 24V DC
Total I/O points: 24 points
Digital inputs: 14 channels
Digital outputs: 10 channels
Output configuration: 6 relay outputs + 4 fast PNP transistor outputs Relay rated current: Max 2A per channel On‑board
Ethernet: None
Product Overview of TM241C24R

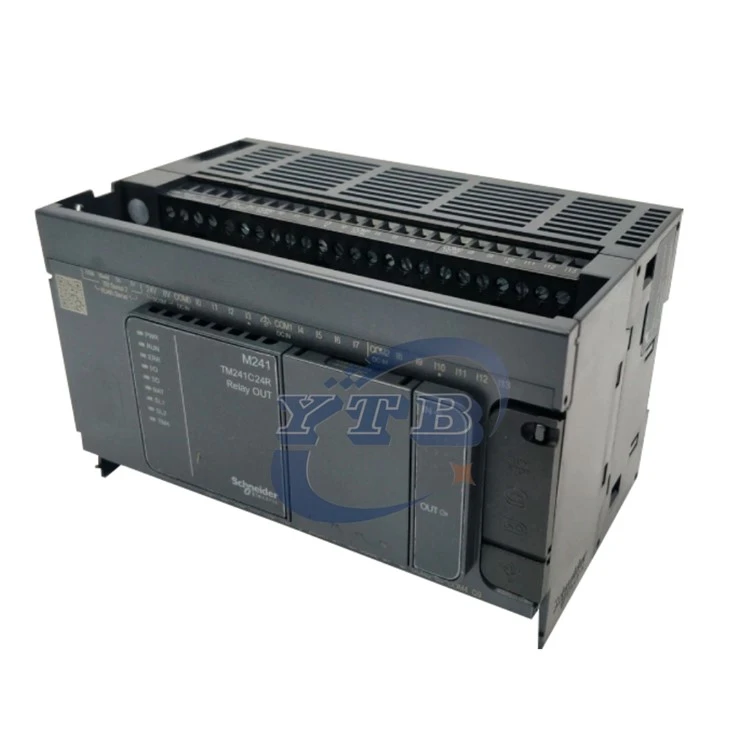

Schneider TM241C24R is a compact PLC from the Schneider Modicon M241 series, mainly used for machinery automation and on‑site industrial control.
It features 24‑point digital I/O, with 14 digital inputs and 10 digital outputs in a mixed‑output configuration. Six relay outputs can directly drive common industrial loads such as contactors, solenoid valves and indicator lights, while four fast transistor outputs handle pulse signals.
Boasting a compact build, it supports TM3 expansion modules to add more I/O points. It is fitted with serial ports and a USB programming port, with no onboard Ethernet, well‑suited for control and expansion of small‑to‑medium standalone machines.
Why Choose Schneider TM241C24R?
● 24‑point I/O configuration: 14 inputs and 10 mixed outputs, sufficient for basic control on most small‑to‑medium‑size machines.
● Mixed‑output design: Relay channels can directly drive a wide range of switching loads.
● Compact form factor: DIN‑rail mounting for easy integration inside control cabinets.
● Expandable: Add TM3 expansion modules when more I/O capacity is required later.
● Unified software: Program and commission with EcoStruxure Machine Expert.
Tip: This model does not come with built‑in Ethernet. Choose TM241CE24R if Ethernet communication is needed for your project.
Application Fields of Schneider TM241C24R
Packaging Machinery The TM241C24R handles sensor signal acquisition, cylinder and solenoid valve control, as well as equipment safety interlock logic for packaging machines.
Conveying Equipment Suitable for various conveyor lines. It reads signals from photoelectric sensors and limit switches, and controls motor contactors and status indicators.
Assembly Machinery Applied for sequence control of automatic assembly machines, processing sensor signals and driving different actuators.
Material‑handling Equipment Performs basic logic control for material conveying, sorting and positioning devices.
General Industrial Automation Well‑suited for standalone machines with moderate I/O requirements and future expansion needs.
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What is the key difference between TM241C24R and TM241CE24R?
A1: Both have identical I/O count and output configuration. The TM241C24R is 24V DC powered with no onboard Ethernet, suitable for local standalone control. The TM241CE24R operates on 100‑240V AC and features a built‑in Ethernet port for device networking and remote commissioning. Select the CE‑suffix model if network communication is required for your project.
Q2: Does TM241C24R support SD card? What can an SD card be used for?
A2: It is equipped with an SD‑card slot, but the SD card needs to be purchased separately. It can store program backups, perform firmware updates and save data logs, enabling quick program restoration on‑site.
Q3: Do I need to buy a separate battery for the RTC real‑time clock?
A3: The PLC has an RTC battery holder, yet the BR2032 coin‑cell battery is not pre‑installed at factory. You need to purchase it separately to preserve system time during power‑off conditions.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Schneider TM241C24R!
