Technical Specifications for 6ES7222-1BF32-0XB0
Product Model: Siemens 6ES7222-1BF32-0XB0
Product Series: SIMATIC S7-1200
Module Type: SM1222 Digital Output Module
Number of Output Channels: 8 DO
Output Type: Transistor (Source / PNP)
Rated Output Voltage: 24 V DC
Max. Output Current per Channel: 0.5 A
Siemens 6ES7222-1BF32-0XB0 Product Introduction

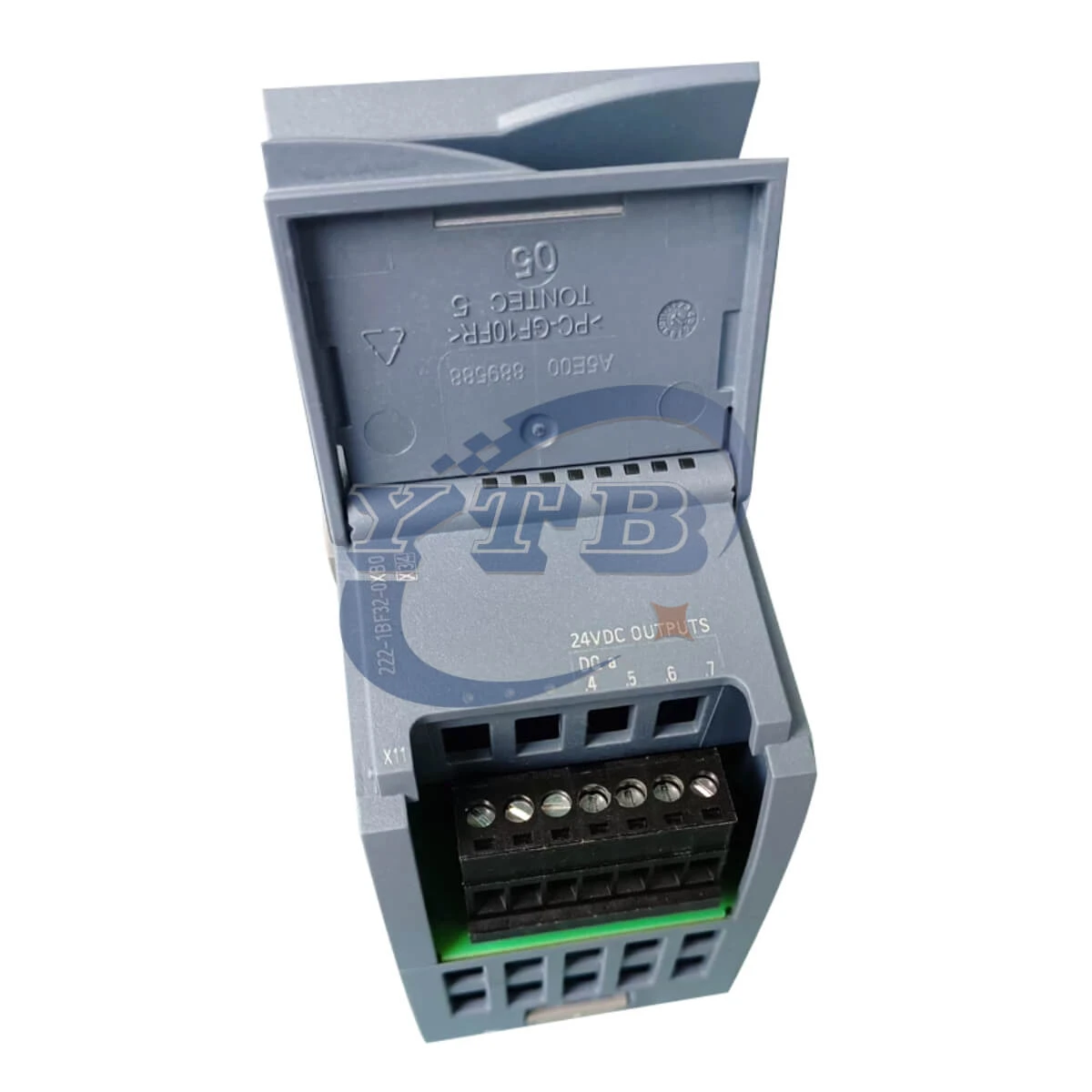

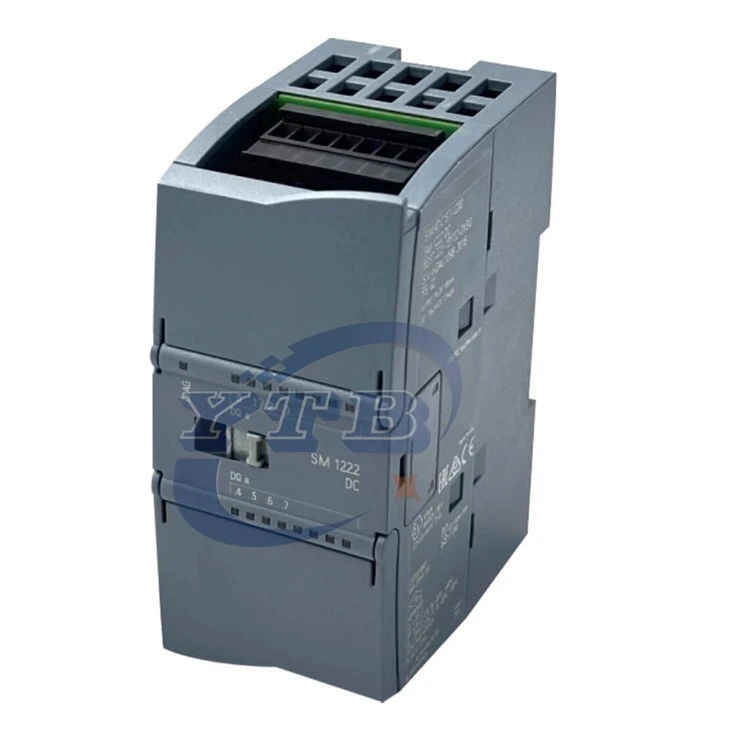

6ES7222-1BF32-0XB0 is the SM1222 digital output module for Siemens SIMATIC S7-1200 PLC. It comes with 8 channels of 24V DC transistor outputs (8DO, PNP source type). Working with S7-1200 CPUs, it provides reliable signals to drive relays, solenoid valves, indicator lights, contactors and other external loads.
Thanks to fast response, stable performance and easy plug-in installation, this module is widely adopted in OEM machinery, packaging equipment, food processing lines, logistics conveying systems, textile machines and automated production lines. It is one of the most popular I/O expansion modules for S7-1200 systems.
Siemens 6ES7222-1BF32-0XB0 Product Features
✅ 8 Digital Outputs Comes with 8 independent output channels to control multiple field actuators, meeting the expansion demands of small and medium automation systems.
✅ 24V DC Transistor Output Fast response transistor (PNP) output, ideal for frequent switching and high-speed control applications.
✅ Seamless compatibility with S7-1200 PLC Designed exclusively for SIMATIC S7-1200 CPUs. Simply plug onto the CPU for extension, quick commissioning without complicated setup.
✅ Modular expansion design Flexible I/O expansion for S7-1200 systems. You can add modules as projects grow, supporting future system upgrades easily.
Installation & Maintenance
To ensure long-term stable operation of the Siemens 6ES7222-1BF32-0XB0 module, please follow standard Siemens installation and maintenance specifications:
Always power off the PLC before installation or replacement to avoid hot-swap damage.
Keep the control cabinet well ventilated and avoid continuous high-temperature operation.
Confirm the output voltage and current match the load requirements during wiring.
Check terminal connections regularly to prevent loose wiring causing system failure.
Support parameter configuration and online diagnosis via TIA Portal for efficient maintenance.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Can 6ES7222-1BF32-0XB0 be used with the S7-1500 series?
A1: No. This is an expansion module exclusively for S7-1200. It only works with S7-1200 CPUs and is incompatible with S7-1500 modules. Please distinguish the series during selection.
Q2: Is this output source type or sink type? Can it drive relay coils directly?
A2: It is source type (PNP) with positive voltage output. It can directly connect to 24V DC loads such as relay coils, solenoid valves and indicator lights. Ensure the current per channel does not exceed 0.5 A. Use an intermediate relay for heavy loads.
Q3: Is a separate front connector required for the module?
A3: No. SM signal modules for S7-1200 come with pluggable terminals as standard. You can wire directly without buying extra front connectors to save costs.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Siemens 6ES7222-1BF32-0XB0!
