Technical Specifications for 6ES7223-1PL32-0XB0

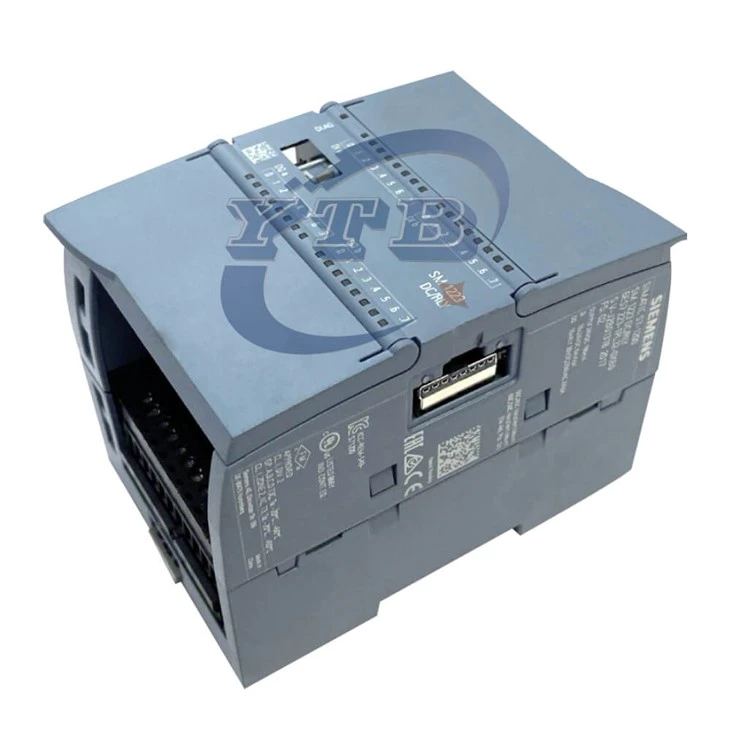

Part Number: Siemens 6ES7223-1PL32-0XB0
Product Series: SIMATIC S7-1200
Module Type: SM1223 Digital Input/Output Module
Digital Inputs: 16 DI, 24V DC (Sink / Source compatible)
Digital Outputs: 16 DO Relay Output
Output Type: Relay contact output
Rated Input Voltage: 24V DC
Max Switching Voltage: 250V AC / 30V DC
Output Current per Channel: 2A (resistive load)
Siemens 6ES7223-1PL32-0XB0 Product Introduction
Siemens 6ES7223-1PL32-0XB0 is the SM1223 digital input/output module for Siemens SIMATIC S7-1200 PLC. It integrates 16 digital inputs (16DI) and 16 relay outputs (16DO Relay). One single module handles signal acquisition and equipment control simultaneously. It saves cabinet space, cuts wiring work and simplifies later maintenance.
Designed for S7-1200 control systems, 6ES7223-1PL32-0XB0 works seamlessly with CPUs and other expansion modules. Widely used in automated production lines, packaging machinery, conveyor equipment, food processing, logistics warehousing and environmental protection machines, it delivers stable and reliable digital signal expansion solutions for various control systems.
Product Advantages of Siemens 6ES7223-1PL32-0XB0
✅ Expand both inputs and outputs with one module Integrated DI and DO channels reduce module quantity and save cabinet installation space.
✅ Flexible relay output Works with both AC and DC loads. No extra intermediate relays required for most applications.
✅ Easy installation & maintenance Standard plug-in module for S7-1200 with clear wiring. Fast replacement minimizes machine downtime.
✅ Stable for long-term continuous operation Consistent performance for continuously running automated equipment with long service life.
✅ Lower overall system cost Combined input and output design cuts hardware and installation expenses, improving cost performance.
Why Choose Siemens 6ES7223-1PL32-0XB0?
If your S7-1200 PLC system needs to expand both input and output points, Siemens 6ES7223-1PL32-0XB0 is a practical option. It features 16 digital inputs and 16 relay outputs, helping you cut down the number of modules and simplify system layout. The relay outputs support both AC and DC loads, suitable for a wide range of industrial equipment, delivering stable and efficient on-off control for automation projects.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Can 6ES7223-1PL32-0XB0 be used with the S7-1500 series?
A1: No. This expansion module is exclusively designed for S7-1200. It only works with S7-1200 CPUs. Hardware and bus interfaces are incompatible with S7-1500 modules. Please distinguish the series during selection.
Q2: Can the relay outputs connect directly to 220V AC loads?
A2: Yes. The relay outputs support both AC and DC loads. It can be directly wired to 220V AC resistive loads. Make sure the current per contact does not exceed 2A. Use an intermediate relay for high-power or inductive loads to extend service life.
Q3: Are the inputs sink or source type? Can NPN sensors be connected?
A3: The inputs support both sink and source wiring. Both NPN and PNP 24V DC sensors are compatible. You just need to adjust the common terminal wiring for flexible field application.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Siemens 6ES7223-1PL32-0XB0!
