Technical Parameters of Allen-Bradley 2198-D032-ERS4
Model: 2198-D032-ERS4
Series: Kinetix 5700
Product Type: Dual Axis Safe Speed Drive
Number of Axes: 2 Axes
Continuous Output Current: 2 × 13.0 Arms
Peak Output Current: 2 × 32.0 Arms
Continuous Output Power: 2 × 4.5 kW @240V input; 2 × 8.9 kW @480V input
Rated Input Voltage Range: 324–528V AC, 3-phase
Module Width: 55 mm
Enclosure Rating: IP20

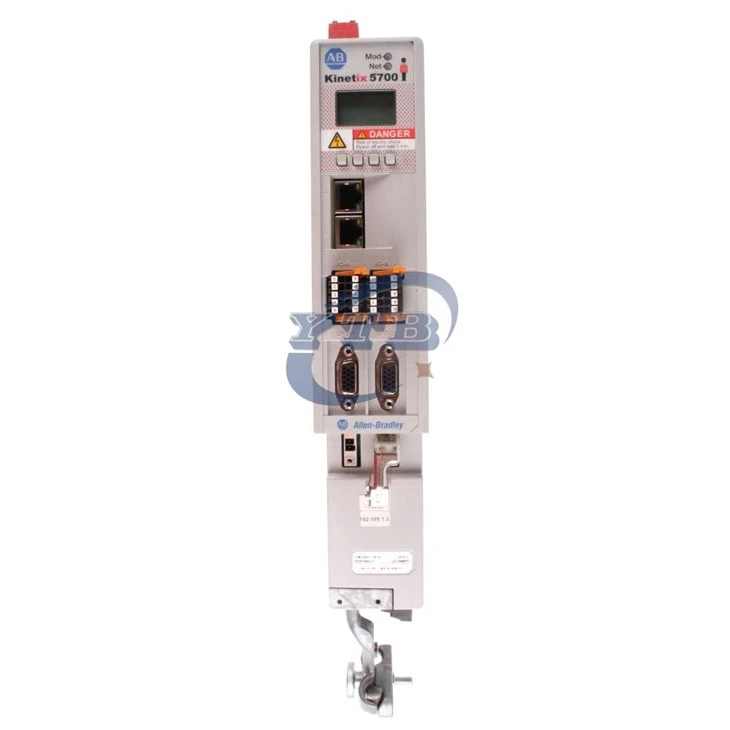

Product Introduction: Allen‑Bradley 2198-D032-ERS4
Allen-Bradley 2198-D032-ERS4 is a dual-axis safety servo drive from Rockwell Automation Kinetix 5700 series, widely used for motion control of industrial equipment. A single module can run two servo axes, with 13.0Arms continuous current and 32.0Arms peak current per axis. It comes with ERS4 advanced safety functions.
It is ideal for automation projects requiring multi-axis synchronized motion and safety control. Commonly applied in production lines, packaging machines, material handling systems and other applications demanding precise motion control. Make your selection based on motor specs, load requirements and the overall servo system configuration.
Appearance, Structure & Design
Appearance
2198-D032-ERS4 is a Kinetix 5700 dual-axis servo drive. It adopts modular design widely used in industrial control, making wiring and layout inside control cabinets easier.
Structure
This dual-axis unit integrates two servo drives into one single module with a width of only 55mm. When planning your cabinet layout, reserve enough space for wiring and heat dissipation, and consider installation requirements for other system components.
Design Features
Built for the Kinetix 5700 motion control system and equipped with advanced safety functions. Follow the official manual for power connection, communication setup, safety configuration and validation during installation and commissioning. Do not judge compatibility simply by appearance or similar model numbers.
Why Choose Allen-Bradley 2198-D032-ERS4?
Convenient dual-axis control: A single module drives two servo axes, ideal for machines requiring multi-axis synchronized motion.
Clear specifications: Dual-axis design with defined output parameters, helping engineers verify motor and load requirements.
Built-in advanced safety functions: Suitable for automation projects needing integrated safe motion control.
Available as replacement spare parts: Works for maintenance of existing Kinetix 5700 equipment.
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What is Allen-Bradley 2198-D032-ERS4?
A1: It is a dual-axis safe servo drive from the Allen-Bradley Kinetix 5700 series, used to drive and control compatible servo motors.
Q2: How many servo axes can 2198-D032-ERS4 control?
A2: This is a dual-axis drive that supports 2 servo axes. The complete system configuration depends on the controller, motors and other drive components.
Q3: What is the output current rating of 2198-D032-ERS4?
A3: It offers 2 × 13.0 Arms continuous output current and 2 × 32.0 Arms peak output current. Verify parameters according to your motor and load for actual use.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Allen-Bradley 2198-D032-ERS4!
