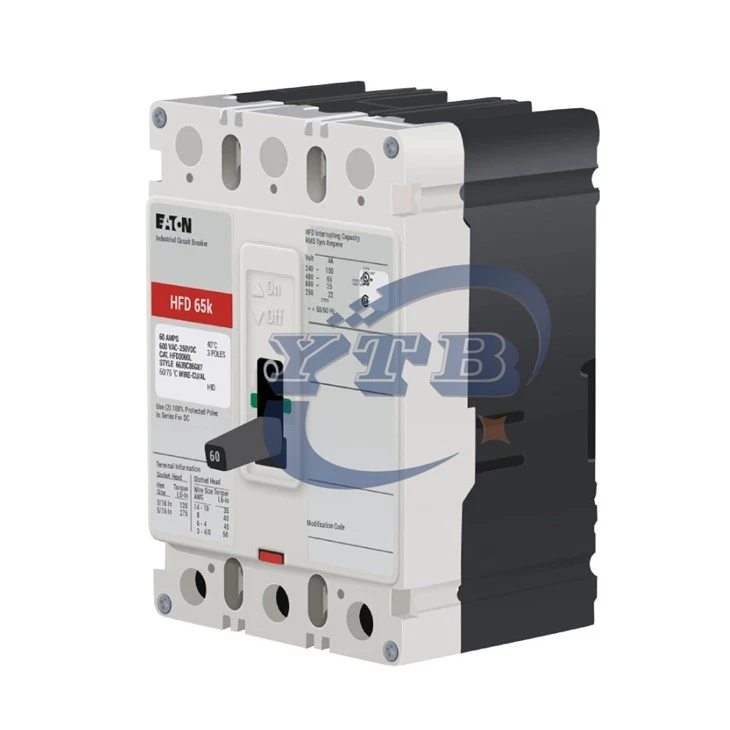

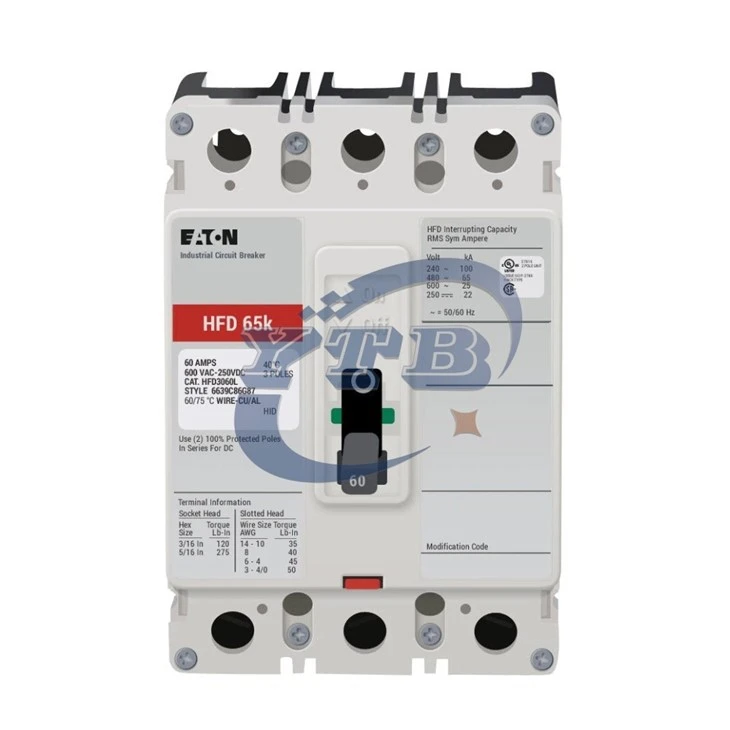

Key Performance & Installation Benefits of HFD3060L MCCB
Our Eaton HFD3060L circuit breaker is a genuine industrial-grade complete molded case circuit breaker instead of a bare frame. You can install and wire it directly upon receipt without purchasing extra trip units or terminals, which saves you a lot of trouble.It boasts solid overall workmanship with a tough, durable housing and stable insulation. It resists aging and cracking even after long-term operation in harsh factory environments with high temperatures and heavy dust, delivering outstanding service life. This breaker features superior interrupting capacity among models of the same rating and works for both AC and DC systems. Compatible with multiple industrial voltages including 240V, 480V and 600V, it reliably cuts off heavy short-circuit current on-site to guarantee high safety.
Eaton HFD3060L Features & Benefits
● Avoid nuisance tripping to prevent disruption to normal production
● Robust and durable housing for long-term stable operation in harsh environments
● Wide range of industry applications, suitable for domestic engineering projects and export equipment matching
● Powerful short-circuit protection that withstands high industrial fault current scenarios
Specifications & Parameters
● Model:Eaton HFD3060L
● Number of Poles: 3-Pole (3P)
● Rated Current: 60A
● Rated Operating Voltage: 600VAC / 250VDC
● Rated Frequency: 50/60Hz
● Trip Type: Thermal-Magnetic Trip (LI: Long-time Delay + Instantaneous)
● Short-Circuit Interrupting Capacity:
100kAIC @240VAC 65kAIC @480VAC 25kAIC @600VAC 22kAIC @250VDC
● Wiring Connection: Dual terminals for line and load
● Mounting Type: Bolt-on panel mounting
Application
● Widely applicable to factory automated production lines, building power distribution, new energy photovoltaic and energy storage equipment.
● Stable performance in harsh heavy-duty workshops with high dust and high temperature conditions.
● Suitable for domestic engineering renovation projects, and matched as supporting parts for complete electrical control cabinets and export industrial equipment.
Product Material & Structural Design
Improve efficiency
Material
The housing is made of thick flame-retardant material with great insulation. It won't crack or age after long-term use in harsh environments. The internal contacts resist arc wear and can withstand frequent switching, working reliably for years in tough sites like mines and chemical plants.
Appearance
It features standard compact size that saves cabinet space. With a tidy look, it meets industrial assembly standards for both domestic electrical cabinets and export supporting equipment.
Design
This is an all-in-one complete breaker pre-fitted with thermal-magnetic trip units and lugs at the factory. You can wire and install it right after delivery with no extra parts needed. Built-in thermal-magnetic protection greatly reduces nuisance tripping. Bolt-on mounting enables easy assembly and removal. It works for both AC and DC circuits and fits most low-voltage distribution systems.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Is the Eaton HFD3060L a complete circuit breaker or a bare frame?
A1: The Eaton HFD3060L is a full, complete factory-built circuit breaker, not a bare frame. It comes pre-equipped with a factory-fixed thermal-magnetic trip unit and line/load terminals. No additional core accessories are required, so it can be installed and wired directly after purchase.
Q2: Does the HFD3060L's short-circuit interrupting capacity adapt to different voltage conditions?
A2: It supports differentiated short-circuit protection for multiple voltage scenarios, covering 240VAC, 480VAC, 600VAC AC and 250VDC DC systems. With excellent interrupting performance, it reliably handles sudden industrial short-circuit faults and complies with most domestic and international industrial power distribution standards.
Q3: Can the HFD3060L be used in DC power distribution systems?
A3: Yes. This model is rated for 250VDC operation with a short-circuit interrupting capacity of 22kAIC under DC conditions. It provides overload and short-circuit protection for DC distribution circuits and DC equipment.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Eaton HFD3060L!
