Eaton HFD3200L Series C F-Frame 3P 200A Molded Case Circuit Breaker

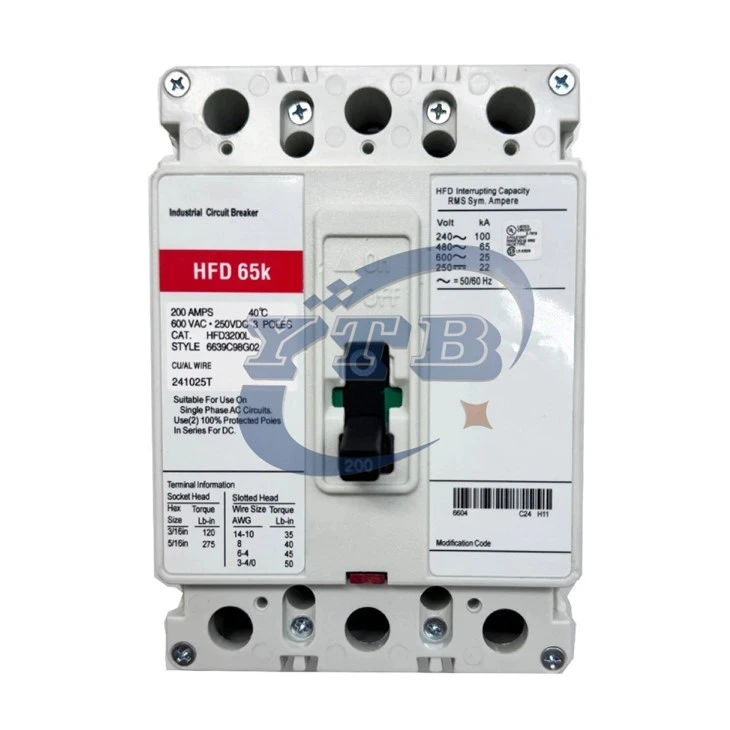

The Eaton HFD3200L is an F-frame molded case circuit breaker from Eaton's Series C platform with a rated current of 200A and factory-fitted thermal-magnetic trip unit, engineered primarily for power distribution environments with high short-circuit currents.

This model is widely used on-site, typically installed inside distribution cabinets or motor control cabinets to provide overload and short-circuit protection. It delivers stable performance under high fault current conditions and is a common choice for the 200A current range.

It is suitable for main feeders in heavy industrial workshops, motor control centers (MCC), large pump stations, and critical power distribution circuits in commercial buildings.

Project Background

This grain deep-processing factory in the US Midwest runs many 200A conveyor motors and large refrigeration systems. Its power system produces high short-circuit current up to 52kA. The original standard FD breakers did not have enough breaking capacity, which frequently caused overheated busbars and arc flash risks. The site required more reliable high-interrupting circuit protection.

Solution

The factory upgraded all main distribution panels and MCC cabinets with Eaton HFD3200L 3P 200A high interrupt MCCBs.

On-site Advantages

With a 65kA @480V interrupting rating, the HFD3200L easily handles the site's high fault current. It effectively controls arc flash energy and prevents short-circuit explosion risks.

Operation Result

The upgraded breakers have run stably for 3 years with no unwanted tripping. Any circuit fault is isolated locally without full-plant power outage, reducing overall equipment damage costs by 70%.
