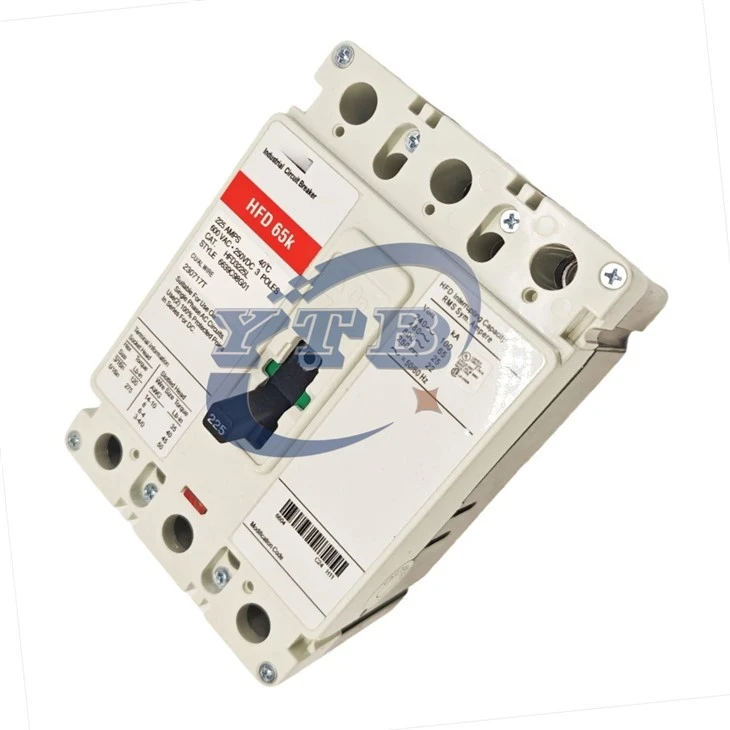

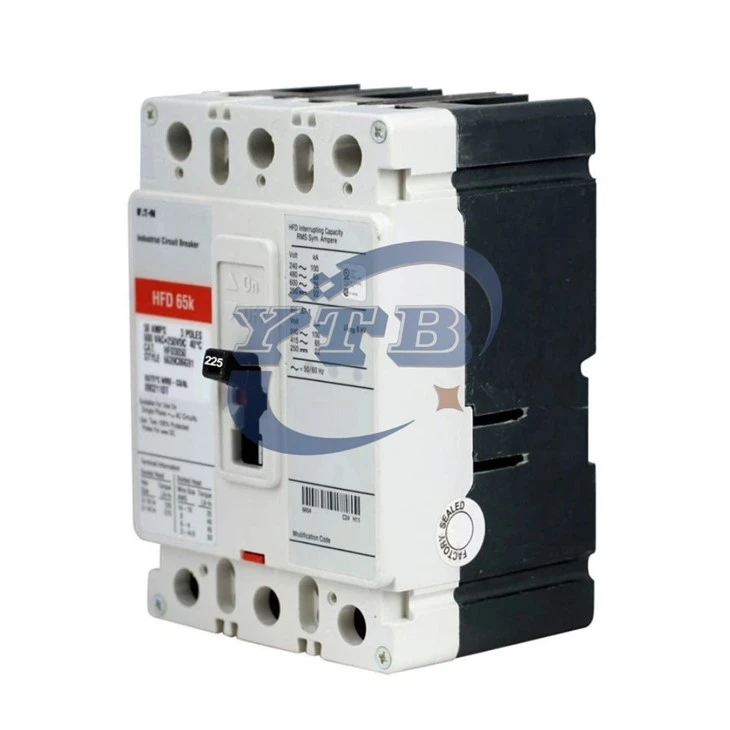

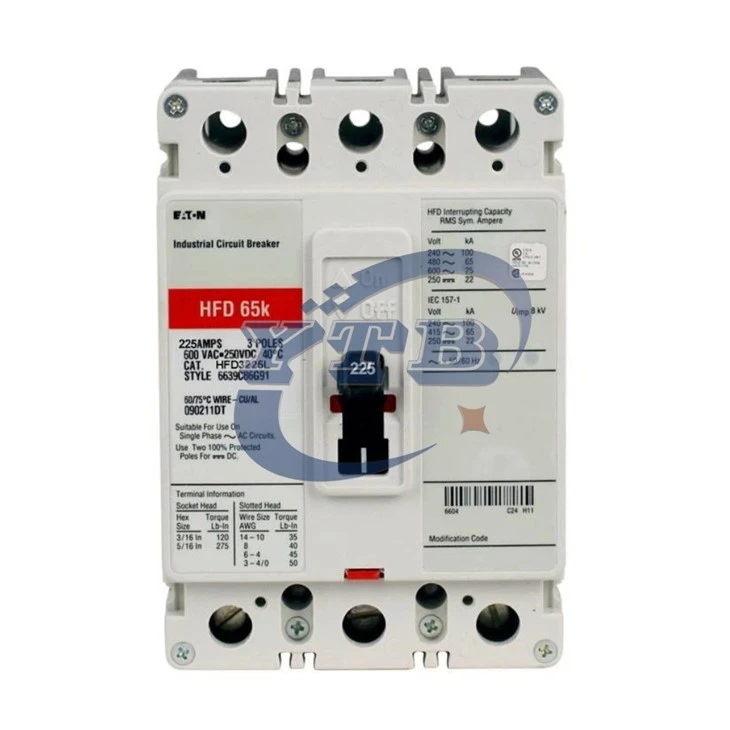

Eaton HFD3225L Series C F-Frame 3P 225A Molded Case Circuit Breaker

Eaton HFD3225L is an F-frame high interrupting capacity molded case circuit breaker from Eaton's Classic Series C platform. It features a 3-pole design with a 225A rated current and a fixed thermal-magnetic trip unit as standard. It is primarily designed for low-voltage power distribution systems with medium-to-large capacity loads and relatively high short-circuit levels.

Compared with standard 200A models, the HFD3225L provides a greater current margin, making it suitable for circuits operating close to their load limits or requiring future expansion. It is a commonly preferred option within the 200A–250A range, offering a good balance of reliability and cost-effectiveness.

In practical applications, it is typically installed in distribution panels or motor control cabinets, providing both overload and short-circuit protection for electrical systems. As a result, the HFD3225L is widely used in heavy industrial power distribution systems, motor control centers (MCCs), large HVAC systems, and OEM heavy-duty equipment applications where high power reliability is required.

● HFD3225L is a high interrupting capacity molded case circuit breaker. It offers a breaking capacity of 100 kAIC at 240V and 65 kAIC at 480V, making it suitable for high short-circuit current environments.

● It features a thermal-magnetic trip unit design. Under mild overload conditions, it operates with a time delay, making it suitable for normal operating situations such as motor starting and current fluctuations, helping to avoid nuisance tripping.

● The HFD3225L is UL 489 certified and CSA compliant, and it also carries an HACR rating for HVAC applications. It can be used in industrial projects, OEM equipment exports, and North American power distribution systems, meeting mainstream electrical standards and requirements.
