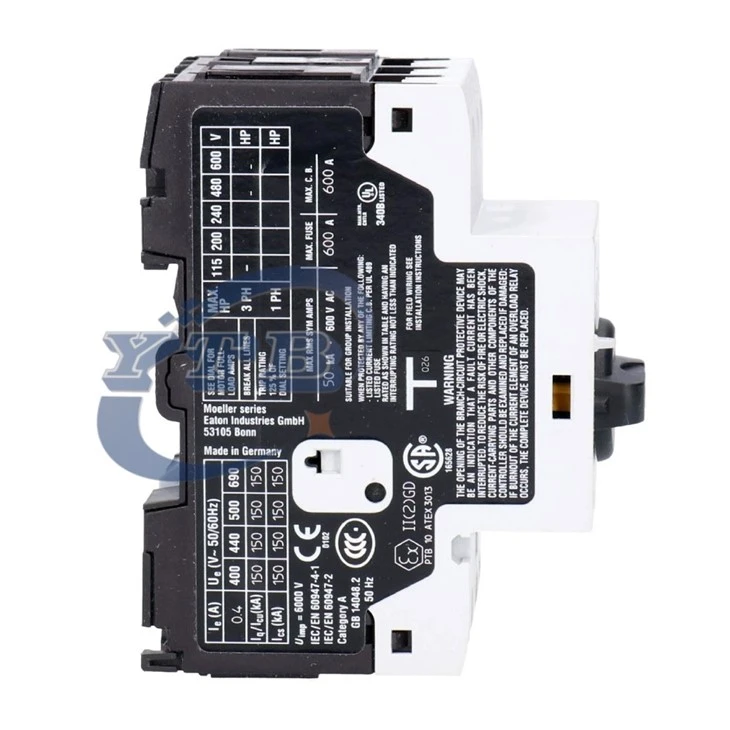

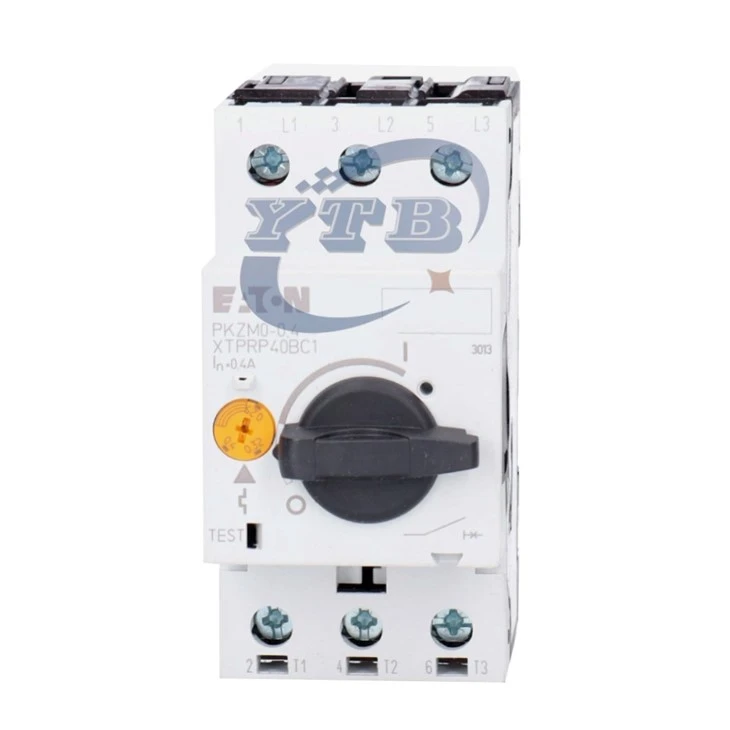

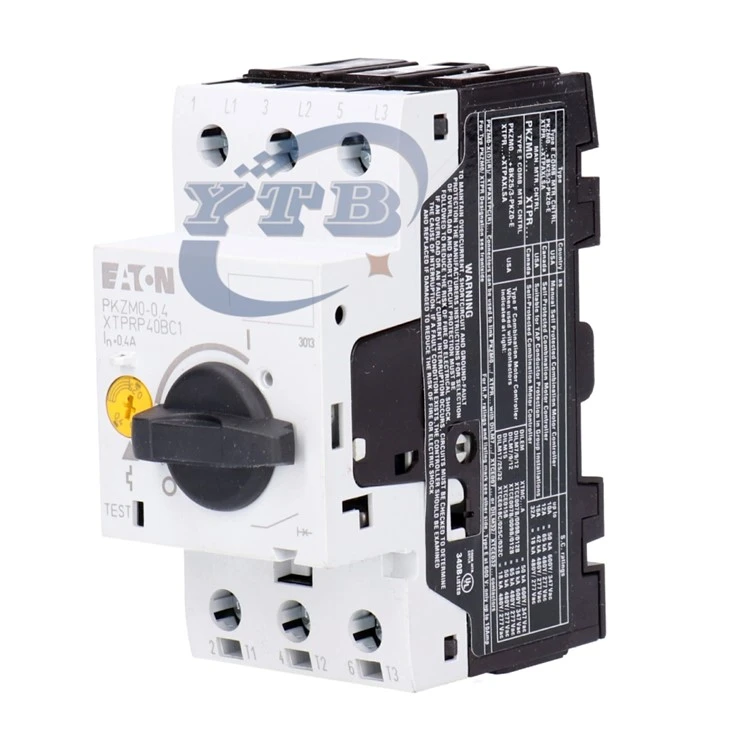

What is Eaton PKZM0-0.4 Circuit Breaker?
The Eaton PKZM0-0.4 is a widely used low-current motor protection circuit breaker in the PKZM0 series, covering an adjustable current range of 0.25–0.4A. It is mainly installed in control circuits for small three-phase motors.
Unlike standard miniature circuit breakers for general wiring, this model is a dedicated motor protection switch (MPCB). If overload, short circuit or abnormal current occurs during motor operation, it trips immediately to cut power and prevent motor burnout.
On-site, this model functions as an all-in-one solution for motor start-up and protection. The PKZM0-0.4 is ideal for compact low-power equipment that requires long-term stable operation.
Why Choose Eaton PKZM0-0.4 ?
Models like the PKZM0-0.4 are engineered specifically for small motors rated 0.25–0.4A with precise current calibration. Its biggest advantage is fewer auxiliary components required: a single unit integrates the functions of a circuit breaker, thermal relay and fuse, saving cabinet space and offering better cost performance.
It also delivers reliable phase-loss protection to effectively prevent motor faults. The PKZM0-0.4 allows quick installation and replacement without extra drilling work.
Eaton PKZM0-0.4 Technical Specifications
● Model:Eaton PKZM0-0.4
● Number of Poles: 3-pole (3P)
● Adjustable Rated Current Range: 0.25A ~ 0.4A
● Trip Class: Class 10
● Rated Operating Voltage: AC 690V (50/60Hz)
● Core Functions: Overload protection, short-circuit protection, phase-loss protection, manual start-stop control
● Ultimate Short-circuit Breaking Capacity Icu: 150kA @ 400VAC
Why Purchase Eaton PKZM0-0.4 From Us?
We have been supplying the PKZM0 series for years and offer genuine Eaton PKZM0-0.4 motor protection circuit breakers with fast delivery to keep your project on schedule. Both single-unit retail and bulk orders are available. Feel free to contact our professional customer service team for one-on-one support.
PKZM0 Series Selection Guide
Improve efficiency
● PKZM0-0.16: 0.1~0.16A (Ultra-low current, suitable for precision micro motors)
● PKZM0-0.4: 0.25~0.4A (This model, widely used for low-power motors)
● PKZM0-1.6: 1~1.6A
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: Can the PKZM0-0.4 only be installed inside control cabinets?
A1: It is normally installed in standard electrical control cabinets. With an IP20 protection rating, it is only for indoor cabinet mounting. It is not recommended for open-air or humid environments without protective enclosures.
Q2: What is the essential difference between the PKZM0-0.4 and ordinary household miniature circuit breakers?
A2: Household circuit breakers are designed merely for circuit protection. The PKZM0-0.4 is a dedicated motor protector optimized for the inrush current generated during motor startup. It offers triple protection against phase loss, overload and locked rotor to safeguard motor windings.
Q3: How durable is this model if the equipment runs non-stop for long periods?
A3: Its flame-retardant and high-temperature resistant housing together with Class 10 tripping characteristic make it suitable for 24-hour continuous operation, effectively lowering the risk of motor burnout.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Eaton PKZM0-0.4!
