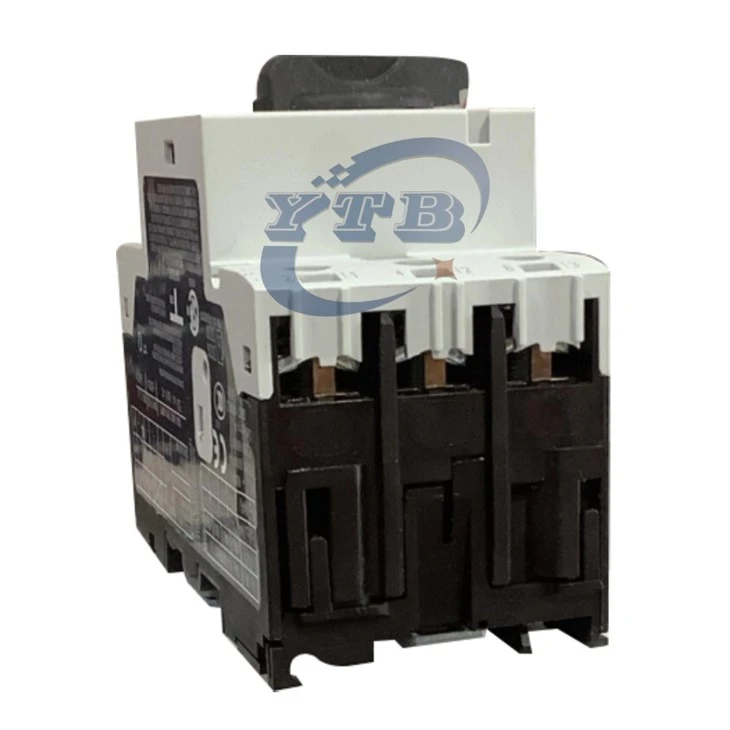

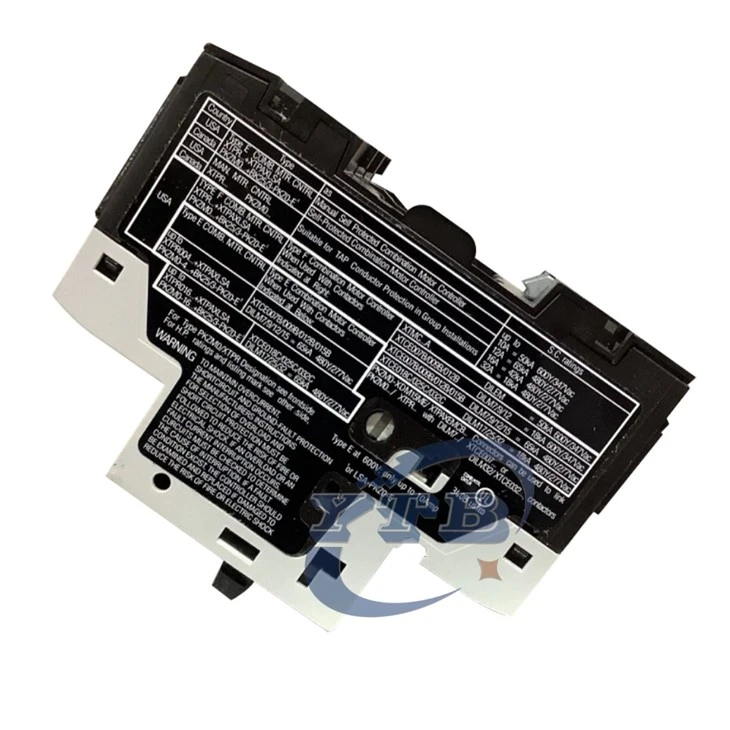

What is Eaton PKZM0-0,25 Circuit Breaker?
The Eaton PKZM0-0,25 is a low-current rotary three-phase motor protection switch from the xStart series, designed specifically for low-power motors. It features stepless current adjustment ranging from 0.16A to 0.25A and is suitable for 0.06kW motors under 400V working conditions, dedicated to the protection of low-current three-phase motors.
It integrates overload protection, short-circuit protection, phase loss protection and isolation functions, making it more suitable for motor loads than ordinary miniature circuit breakers.
Built with a sturdy rotary knob, it fits centralized wiring in integrated control cabinets perfectly. Besides, it can directly replace the old Moeller model of the same specification without cabinet modification or rewiring.
Advantages of Eaton PKZM0-0,25
● It delivers precise protection for low-current motors with continuously adjustable current from 0.16A to 0.25A.
● A single unit provides overload, short-circuit and phase-loss protection as well as power isolation, simplifying control circuit design.
● Adopting Class 10 tripping characteristics, it prevents false tripping during motor startup and cuts off power rapidly when faults arise.
● It is a direct replacement for the old Moeller model of the same specification.
Eaton PKZM0-0,25 Technical Specifications
● Model:Eaton PKZM0-0,25
● Series: Eaton xStart Series
● Adjustable Current Range: 0.16A ~ 0.25A
● Poles: 3-pole (3P)
● Rated Operating Voltage: 690V AC
● Operation Type: Rotary handle type (integrated switching and tripping reset)
● Applicable Motor Power: Typically for 0.06kW miniature three-phase asynchronous motors under 400V working condition
● Mounting Type: DIN35 standard rail mounting
How to Choose Different Suffix Versions
● Standard version (no suffix): Equipped with screw terminals, certified to CE/IEC standards. It offers the best cost performance and fits domestic markets and most regions across Europe and Asia.
● -EA North American version: Fitted with screw terminals and additionally certified UL/CSA, exclusively for export projects to the United States and Canada.
● -PI spring terminal version: Tool-free spring connection for faster installation, widely preferred in European and Australian markets.
Design Highlights
Improve efficiency
● Material
This switch features solid workmanship. Its housing is made of high-strength flame-retardant plastic, which is wear-resistant, impact-resistant and highly durable for industrial environments.
● Appearance

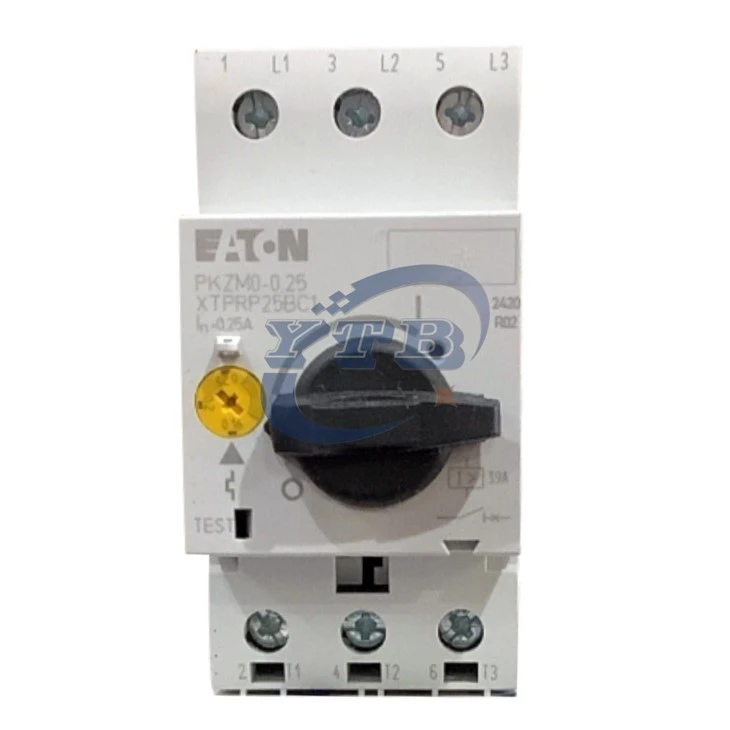

The compact body takes up little cabinet space. The smooth rotary knob on the front comes with clear current scales for easy on-site current adjustment.
● Design
With well-arranged terminals for simple wiring, it fits standard DIN rail mounting, saving time for new installation as well as maintenance and replacement.
Aftersales Support
Quantity available: In stock.
01
Warranty: 12 months.
02
Lead time: Shipment within 3-5 working days.
03
Terms of payment: T/T. RMB (CNY) support.
04
Courier partners: FedEx, DHL, UPS, TNT, EMS, SF express.
05
FAQ
Q1: What is the difference between PKZM0-0,25 and PKZM01-0,25?
A1: They have identical electrical performance. The only difference lies in the operation mode. PKZM0-0,25 adopts a rotary knob and only provides protection functions; PKZM01-0,25 is a push-button model with built-in start-stop control.
Q2: Does it support DIN rail mounting?
A2: Yes. It is designed for standard 35mm DIN rail mounting, enabling quick installation and convenient maintenance & replacement afterwards.
Q3: Which industries is it suitable for?
A3: It is widely used in automation equipment, packaging machinery, laboratory instruments, conveying systems, small fans, water pumps, OEM complete sets and various industrial control systems.
Q4: How can I place an order or apply for bulk purchase discounts?
A4: Send your required order quantity via email to Irene8866@163.com, or leave us a message on WhatsApp (+86 18950163907). We will reply within 24 hours with formal quotation and stock confirmation.
For more product information, please contact our professional sales team to obtain the latest pricing and stock information for the Eaton PKZM0-0,25!
